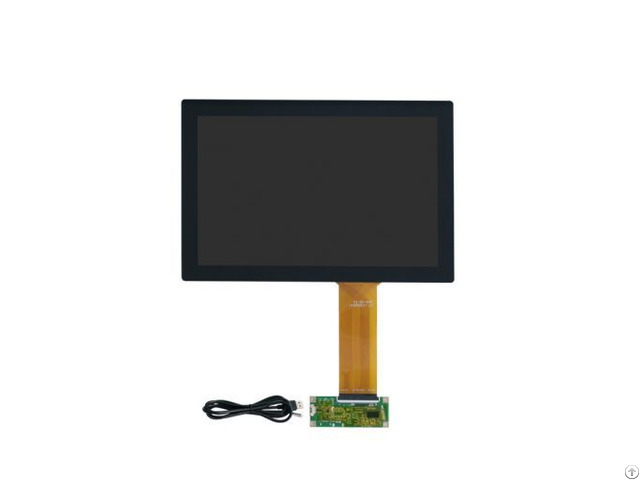

10.1 Inch Optical Bonding Touch Screen LCD Panel

10.1 Inch LCD panel with multi-touch is a universal touchscreen display module for HMI (human machine interface).

It is recommended for medical devices and industrial equpopment due to its wide operating temperature and 16.7M display colors.

YS101QT01V1.0 is WXGA resolutions (1280 horizontal by 800 vertical pixel array), optically bonded with projected capacitive touchscreen sensor.

There is a strengthened cover glass on top of this touchscreen display to protect it.

You can customize the color, the dimension, the shape, logo, text and thickness.

It supports plug-and-play multi-touch via the USB interface on the controller board.

This module is recommended for medica images and industrial devices.

Sure, it can be also used on many other products.

Main Features of Optical Bonding LCD Panel

• 1 ort LVDS inteface input, 40 pins connector is used for LCD module electronics interface and the backlight system.

Connetor is MSAK24025P40G or equivalent.

• 6+2bit color depth, display 16.7M colors.

• Thin and light weight.

• High luminance and constrast ratio, low reflection and wide viewing angles.

• ROHS compliant.

• Touch is projected capacitive touch screen technology with ITO sensor glass optically bonded under cover glass.

• Touch controller board supports USB interface, IIC Inteface and RS232 interface.

• Touch points supports finger touch up to 10 points, compatible with Windows, Android and Linux operating systems.

Company Contact:

• Posted By: Dongguan Yunshang Electronic Technology Co., Ltd.

• Phone: 18802643295

• Address: Room 301, building 8, No.74, Chang'an Zhen'an East Road, Chang'an Town, Dongguan , Guangdong , China

• Email:

• Website: https://www.cloudtoptouch.com/

• Business Description: WHO WE ARE

  Established in the year of 2015, Dongguan Yunshang Electronic Technology Co., Ltd., well known as CloudTop, is located in Dongguan, China.

  We are a manufacturer with custom ability for touch display modules.

  We are equipped with advanced manufacturing machines for touch display modules in more than 2500 square meters clean rooms.

  WHAT WE DO

  CloudTop is focusing on manufacturing and providing more competitive touch screen solutions with size from 3.5 inches to 75 inches, which are widely used on industrial equipment, medical devices, beauty industry, smart home appliances, vending machines, entertainment equipment, POS terminals and etc.

  Our main products and services are as below:

  1 - Touch Display Module (TFT-LCD module bonded with touch screen);

  2 - Projected Capacitive (PCAP) Touch Screen;

  3 - TFT-LCD Module

  SOME ADVANTAGES

  ITO touch sensors are designed and produced in our self-owned factory.

  It can support multi-touch, gloved-hand touch, touch with water on the surface, passive pen and active pen as requested.

  Front glass’ surface hardness is 6H and its thickness can go up to 10mm.

  For better visual effect, there is anti-glare coating and anti-reflective coating for option.

  Logo, text, shape, hole, color, size can be customized.

  TFT-LCD modules are original new from BOE, TIANMA, AUO, INNOLUX and etc.

  We recommend TFT-LCD modules as the usage and working environment.

  High brightness and stretched TFT-LCD modules can be customized.

  For bonding TFT-LCD modules with PCAP touch screen, we provide optical bonding and tape-bonding technologies.

  Tape bonding is more cost effective with adhesive tape around the bezel of TFT-LCD and PCAP touchscreen sensor.

  There is an air-gap between them, hence, it is also called air-gap bonding.

  Optical bonding is laminating PCAP touchscreen completely to TFT-LCD, which has much less light-reflection caused by the tape bonding air-gap.
