Long Range Sensors For Distance Test - China
price: contact company for price
Model: LSPU6840IPH95G-1
Construction: long range
Using Method: dual use
Center Frequency: 40 ± 3.0KHz
Bandwidth: 3.0KHz
Echo Sensitivity: -76 dB min.
Min.
Parallel Resistance: 180 ohms ± 30%
Capacitance: 3000pF ± 20% at 1KHz
Allowable input Voltage: 1800 Vp-p
Directivity: 15 ± 2 degree
Detectable range: 0.4 ~ 12m
Protection Class: IP65
Housing Material: plastic
Company Contact:
- Posted By: Shenzhen Longsun Acoustic Co., Ltd.
- Phone: 8675532971865
- Address: Unit No. 105, Huang Mu Gang, West Area, Huafu Road, Shenzhen , China
- Email:
- Website: https://www.longsun-acoustic.net
Published date: June 17, 2013
- Business Description: Longsun Acoustic is a leading professional designer and provider of
acoustic components: ultrasonic sensor, loudspeaker, dynamic receiver,
buzzer, siren and alarms etc, meanwhile with our strong R&D team and up to
date production equipments based in our factory, we provide customers
with the high quality products and efficient service to meet your
different requirements.
Our goal is to provide best acoustic solutions and zero defect quality products to meet our customer's satisfaction and beyond their expectations.
Business philosophy:
R & D: upgrading technology, creating the requirement, sharing the profit;
Quality: mutual cooperation, quality upgrade, customer satisfaction;
Service: reasonable price, delivery on time, service in time.
We believe our success comes from the trust of our customers!
Related listings
-
High Frequency SensorsComponents - Other - Shenzhen Longsun Acoustic Co., Ltd. - China - June 17, 2013 - contact company for priceModel:LSPU11400IAH10.5G-1 Specifications: Constr uction: High frequency Using Method: dual use Center Frequency: 400 ± 16.0KHz Bandwidth: 32.0KHz Echo Sensitivity: -75 dB min. Min. Parallel Resistance: 600 ohms ± 30% Capacitance: 180pF ± 20% at 1KHz ...
-

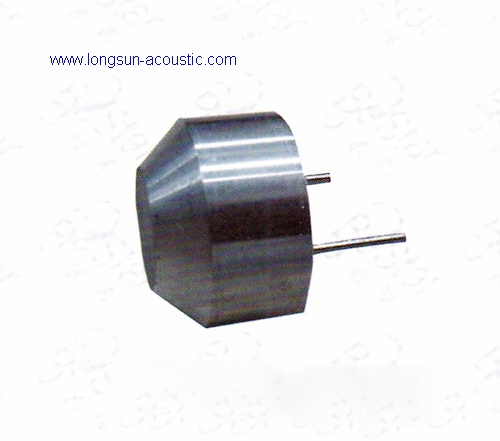

Waterproof Sensor With Wire LeadComponents - Other - Shenzhen Longsun Acoustic Co., Ltd. - China - June 17, 2013 - contact company for priceFeatures: *Water proof and dual use *Compact and light weight *High sensitivity and sound pressure *Less power consumption *High reliability Electrical and Mechanical Characteristics: Type: HPU1840FWAH12G, dia: 18mm, H: 12mm Using Method: Dual use Fr...
-
