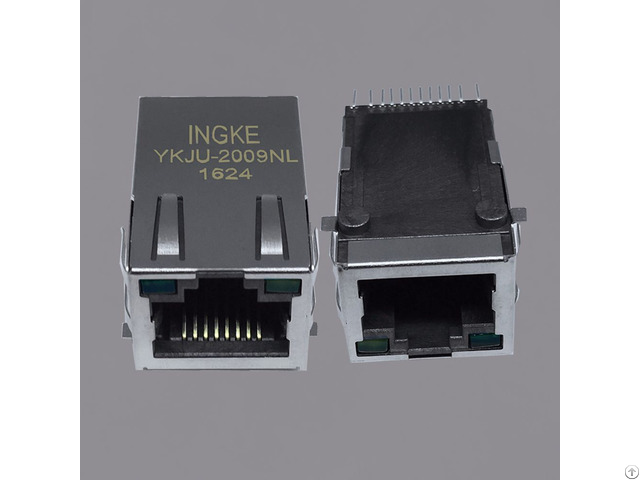

J3011g21dnl Ykju 2009nl Single Port Smt Rj45 Magnetic Jack Connector - China

Ingke YKJU-2009NL 100% cross J3011G21DNL Single Port SMT RJ45 Magnetic Jack Connector Part Number : J3011G21DNL Made in China: YKJU-2009NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging : Tape & Reel (TR) Connector Type: RJ45 Number of Ports : 1 Number of Rows : 1 Applications : 10/100 Base-T, AutoMDIX Mounting Type : Surface Mount Orientation: 90° Angle (Right) Termination : Solder LED Color: Green-Yellow Number of Cores per Jack : 4 Shielding : Shielded, EMI Finger Features: Board Guide, Solder Retention Tab Direction : Up Contact Material : Phosphor Bronze Contact Finish : Gold Operating Temperature : -40℃~85℃ Flammability Rating: UL 94 V-0 Contact Finish Thickness : 30µin (0.76µm) Shield Material : Copper Alloy Housing Material : Thermoplastic

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
