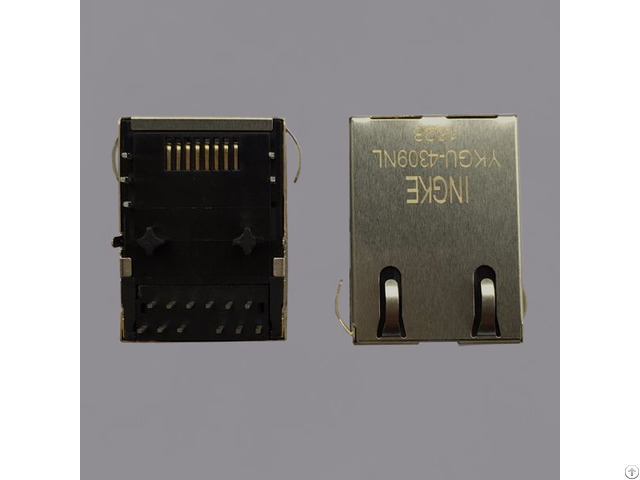

J0g 0001nl Ykgu 4309nl Rj45 Magnetic Jack Connector - China

Ingke YKGU-4309NL 100% cross J0G-0001NL RJ45 Magnetic Jack Connector Pulse Part Number : J0G-0001NL

Made in China: YKGU-4309NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green/Orange-Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

JT6-1473NL JT6-1480NL J00-0061NL JG0-0032NL JG0-0098NL JG0-0026NL JG0-0027NL JXR0-0001NL J00-0065NL J0G-0007NL JV011I21NLT J0026D01BNL JD2-0010NL J00-0062NL JXD2-0010NL J00-0066NL J0C-0004NL J0C-0004NLT JXD3-0004NL JXD1-0005NL JXD3-0004NL JXD1-0005NL JXD2-0011NL JXD3-0003NL JXD0-0001NL JKM-0010NL JXD0-0002NL J0006D21NL JXD1-0001NL JKM-0011NL JXD3-0001NL JV006I21NL JV006I21NLT J1006F21NL JXD1-0002NL J0C-0005NL J0C-0006NL J0C-0006NLT JKM-0009NL JKM-0008NL JXD3-0002NL J0011D11NL J0012D21NL J1006F01PNL JKM-0001NL JX0011D21NL JV026I21NLT J1026F01NL J0018D21NL J1012F21RNL JXKM-0013NL J1026F01QNL J0026D21FNL
