J0g 0001nl Single Port 1000 Base T Magnetic Modular Rj45 Jacks Through Hole - China

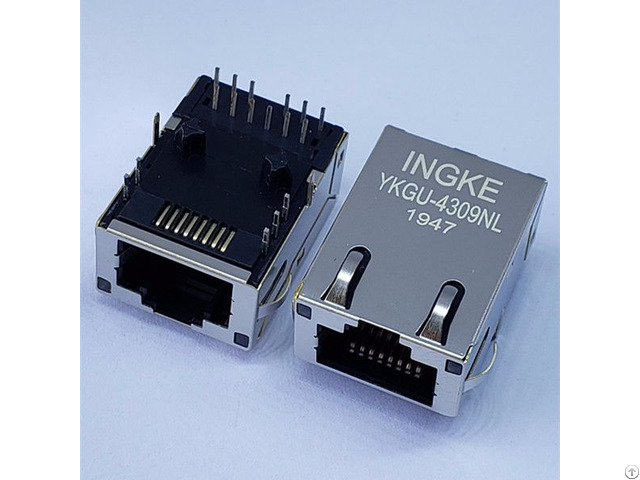

INGKE YKGU-4309NL Direct Substitute J0G-0001NL Single Port 1000 Base-T Magnetic Modular RJ45 Jacks Through Hole Part Number: J0G-0001NL

Made in China: YKGU-4309NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90 Angle (Right)

Termination: Solder

LED Color: Green, Orange - Yellow

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Up

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 15in (0.38m)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;

JY0-0016NL J8064E62NL JW0-0006NL JW0-0013NL J8064D628ANL JT4-1108HL JTH-0024NL JG0-0129NL JG0-0023NL JG0-0024NL J8064D648ANL JG0-0025NL JD2-0001NL J00-0063NL J00-0042NL J0C-0005NLT JD0-0001NL JD1-0001NL J0006D01BNL J0026D01NL J0026D21NL JV011I21NL JV026I21NL J0011D01NL J0018D21ENL J0026D21ENL JXR1-0005NL JXR1-0011NL JG0-0070NL JG0-0028NL J0C-0003NLT J00-0045NL J00-0014NL J0011D21NL J3011G21DNLT J0006D21BNL J3026G01DNLT J1011F01PNL J1012F21CNL J1011F21PNL J0011D01BNL J0011D21BNL J0026D21BNL J3011G21DNL JXR0-0015NL JXR0-0011NL JXR1-0015NL J1026F01PNL J1026F21CNL JP011821UNL J3026G21DNL JK0-0136NL J0G-0003NL J0G-0001NL J0G-0009NL
