Ingke Yktd 8319nl 100 Percent Cross Jt4 1108hl Single Ports 10g Base T Magnetic Rj45 Jacks - China

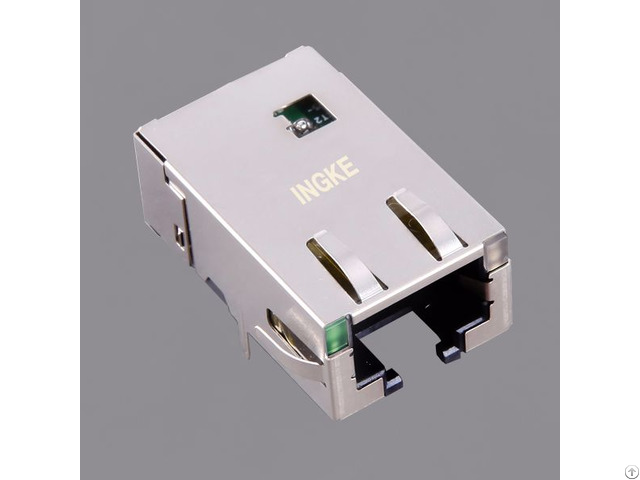

Ingke YKTD-8319NL 100% cross JT4-1108HL Single Ports 10G Base-T Magnetic RJ45 jacks Part Number : JT4-1108HL

Made in China: YKTD-8319NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10G Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow, Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide, Filter

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Manufacturer: Ingke Technology Co., Ltd

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: (1).

OEM factory for Connector more than 10 years.

(2).

Cost reduction, lead time within 1 week, FREE samples.

(3).

After sales services 24*7 to help you solve any kind of problems

(4).

Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%, moreover the price are more competitive for 5-10% over the market

(5).

Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm) Ingke Technology Mass production of the following models;

JT6-1480NL JTL-U1002NL JTL-U1003NL JTL-U1001NL JTH-0024NL JT4-1120HL JT3-1101HL JT6-1473NL JT4-1128HL JT4-1104HL JT4-1109HL JT3-1105HL JT7-1104NL JT7-1115NL JT8-2000HL JT8-4000HL JT3-1125HL JT4-1160HL JTH-0020NL JT7-1119NL J1V-U7000NL
