Ingke Ykkd 8219nl 100 Percent Cross 7499111000a 1 Port Rj45 Modular Jack Connectors - China

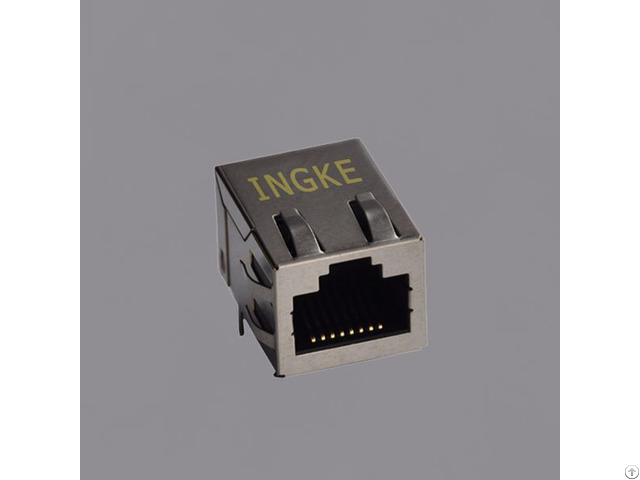

Ingke YKKD-8219NL 100% cross 7499111000A 1 Port RJ45 Modular Jack Connectors Part Number : 7499111000A

Made in China: YKKD-8219NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Does Not Contain LED

Number of Cores per Jack : 12

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Manufacturer: Ingke Technology Co., Ltd

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: (1).

OEM factory for Connector more than 10 years.

(2).

Cost reduction, lead time within 1 week, FREE samples.

(3).

After sales services 24*7 to help you solve any kind of problems

(4).

Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%, moreover the price are more competitive for 5-10% over the market

(5).

Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm) Ingke Technology Mass production of the following models;

74980111211 74980111211 74980111211 7499010122 7498011122 7499111121A 7498011122R 7498011122R

7498011122R 74990111215 7499211121A 7499210121A

7499211125 7498111001 7498111001 7498111001
