Ingke Ykju 8109nl 100 Percent Cross J1012f21cnl 1 Port Magnetic Rj45 Modular Connectors - China

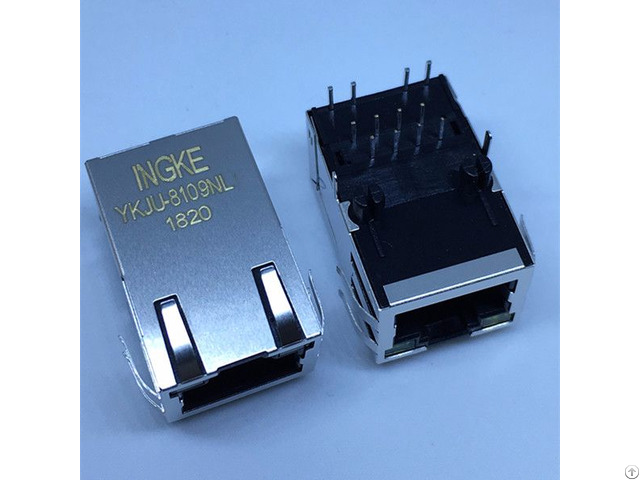

Ingke YKJU-8109NL 100% Cross J1012F21CNL 1 Port Magnetic RJ45 Modular Connectors Part Number : J1012F21CNL

Made in China: YKJU-8109NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-TX, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Yellow - Green

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 15µin (0.38µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

JX0011D21BNL J0N-0015NL J1N-0003NL JXG0-0098NL J8064D688ANL J8064D668ANL J0N-0011NL JX8064D668ANL JC0-0351NL J1N-0005NL J1N-0007NL J0N-0012NL J8064E68NL J1N-0004NL J1N-0008NL J0B-0384NL JX20-0114NL JX8064D688ANL J20-0114NL JG0-0070NL J3011G21WNL JX0026D21BNL JX30-0005NL JT4-1121HL JK0-0116NL JK0-0144BNL JXK0-0136NL JK0-0177NL JXK0-0190NL JGL-0001NL JT4-1109HL JX80-0019NL JC0-1012NL JTH-0020NL J8064D649PNL JC0-1011NL J8064E64NL J1N-0012NL J1N-0013NL JGL-0004NL JX80-0022NL J1N-0011NL JXG0-0129NL JX20-0037NL J8064E66NL J1N-0006NL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
