Ingke Ykjd 8689b 100 Percent Cross 7499011222a We Rj45lan Rj45 Jacks With Integrated Magnetics - China

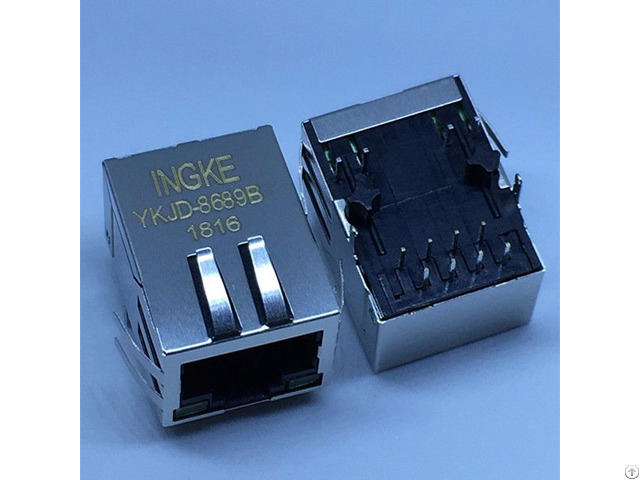

Ingke YKJD-8689B 100% cross 7499011222A WE-RJ45LAN RJ45 Jacks with Integrated Magnetics Part Number : 7499011222A

Made in China: YKJD-8689B

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors - Jacks With Magnetics

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Green

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

7499011121A 74990100011A 7499011222A 7499010211A 74990111217 7499010441 74990112116A 7499410213 7499111001A 7498111120R 7499110122 7498011211 7499211122A 7499121211 7499210124A 7499111000A 7499051002 7499410420 7497111611A 7499511610 7499021125 7499110124 7499411122 7499511440

7499210123 7499511611A 7499011001A 7499010001A 7499011002 7499211123 7499611421

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
