Ingke Ykjd 8169nl 100 Percent Cross 7499011121a Through Hole Rj45 Magnetic Jack Connector - China

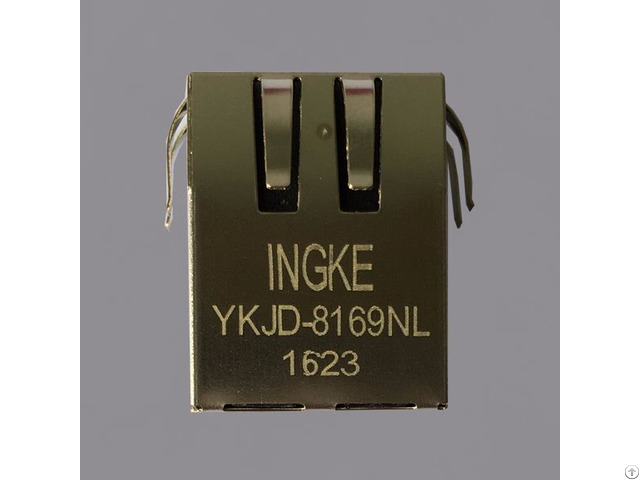

Ingke YKJD-8169NL 100% cross 7499011121A Through Hole RJ45 Magnetic Jack Connector Part Number : 7499011121A Made in China: YKJD-8169NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Packaging : Tray Connector Type: RJ45 Number of Ports : 1 Number of Rows : 1 Applications : 10/100 Base-T, AutoMDIX Mounting Type : Through Hole Orientation: 90° Angle (Right) Termination : Solder LED Color: Yellow - Green Number of Cores per Jack : 4 Shielding : Shielded, EMI Finger Features: Board Guide, Solder Retention Tab Direction : Down Contact Material : Copper Alloy Contact Finish : Gold Operating Temperature : -40℃~85℃ Contact Finish Thickness : 15µin (0.38µm) Shield Material : Copper Alloy Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

7497010211A 74990110013 7499210001A 7499021121

7499111614A 7499111005 7499511001A 7499011122A

7499211123A 7499031120A 7498011121 7499031211

7499211003 7499411001 7499111614 7499311001

7499511001 7499511611 74990110010

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
