Ingke Ykjd 8139nl 100 Percent Cross Hfj11 S101e L21 Rj45 Magjack Connectors - China

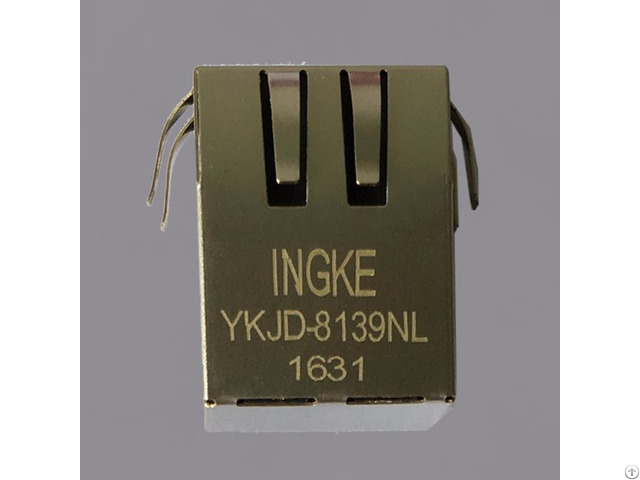

Ingke YKJD-8139NL 100% cross HFJ11-S101E-L21 RJ45 Magjack Connectors Part Number : HFJ11-S101E-L21

Made in China: YKJD-8139NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Yellow-Green

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Manufacturer: Ingke Technology Co., Ltd

INGKE can provide 3D model for engineers' design

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: 1).

High-quality, OEM factory for RJ45 Connector more than 10 years.

2).

Cost reduction, lead time within 1 week, FREE samples.

3) .

After sales services 24*7 to help you solve any kind of problems Ingke Technology Mass production of the following models;

HFJT1-1G41-L11RL HFJT1-1G41-L12RL HFJT1-1G46RL HFJT1-1G46-L11RL HFJT1-1G46-L12RL HFJT1-E1G01RL HFJT1-E1G01-L11RL HFJT1-E1G01-L12RL HFJT1-E1G06RL HFJT1-E1G06-L11RL HFJT1-E1G06-L12RL HFJT1-E1G11RL HFJT1-E1G11-L11RL HFJT1-E1G11-L12RL HFJT1-E1G16RL

HFJT1-E1G16-L11RL HFJT1-E1G16-L12RL HFJT1-E1G41RL HFJT1-E1G41-L11RL HFJT1-E1G46RL HFJT1-E1G46-L11RL HFJT1-E1G46-L12RL HFJ11-1G01ERL HFJ11-1G01E-L11RL HFJ11-1G01E-L12RL HFJ11-1G06ERL HFJ11-1G06E-L11RL HFJ11-1G06E-L12RL HFJ11-1G11ERL HFJ11-1G11E-L11RL HFJ11-1G11E-L12RL HFJ11-1G16ERL HFJ11-1G16E-L11RL HFJ11-1G16E-L12RL HFJ11-1G41ERL HFJ11-1G41E-L11RL HFJ11-1G41E-L12RL HFJ11-1G46ERL
