Ingke Ykjd 8005nl 100 Percent Cross J0011d21enl Through Hole Magnetic Rj45 Connectors - China

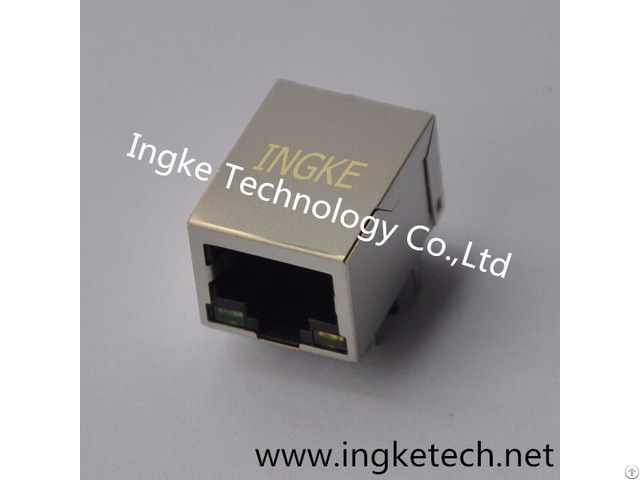

Ingke YKJD-8005NL 100% cross J0011D21ENL Through Hole Magnetic RJ45 Connectors Pulse Part Number : J0011D21ENL

Made in China: YKJD-8005NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Green

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

JG0-0023NL JG0-0024NL J8064D648ANL JG0-0025NL JD2-0001NL J00-0063NL J00-0042NL J0C-0005NLT JD0-0001NL JD1-0001NL J0006D01BNL J0026D01NL J0026D21NL JV011I21NL JV026I21NL J0011D01NL J0018D21ENL J0026D21ENL JXR1-0005NL JXR1-0011NL J3026G01DNL JK0-0125NL JK0-0133NL J00-0051NL JD0-0002NL JD1-0002NL J1012F01CNL J0011D21ENL JXR0-0005NL J0026D21GNL JP026821UNL JW0-0009NL JT4-1120HL JT3-1101HL

JG0-0031NL J20-0013NL J20-0014NL J1012F21KNL JD1-0003NL JD0-0003NL JD1-0004NL JD2-0011NL JD0-0004NL JD3-0001NL JD3-0002NL JT3-1105HL
