Ingke Ykjd 0139dnl Direct Substitute Hr861153c Single Port 100 Base T Poe Rj45 Lan With Transformer - China

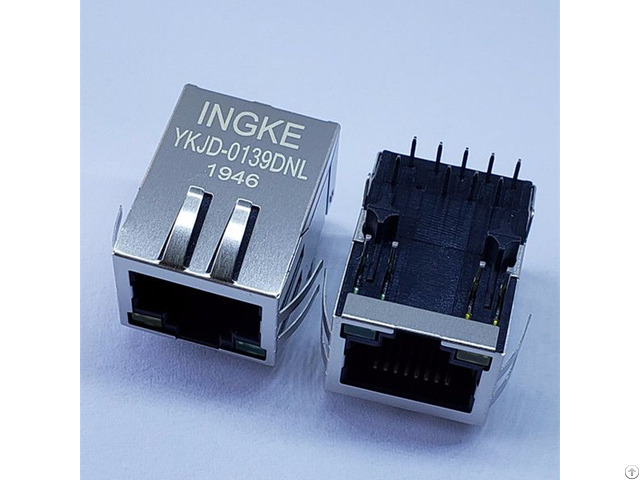

INGKE YKJD-0139DNL Direct Substitute HR861153C Single Port 100 Base-T POE RJ45 LAN with Transformer Through Hole Part Number: HR861153C

Made in China: YKJD-0139DNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)

Mounting Type: Through Hole

Orientation: 90° Angle (Right)

Termination: Solder

LED Color: Yellow - Green

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Down

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 15µin (0.38µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic
