Ingke Ykgu 8809nl 100 Percent Cross Si 51009 F Through Hole Rj45 Magnetic Jack Connectors - China

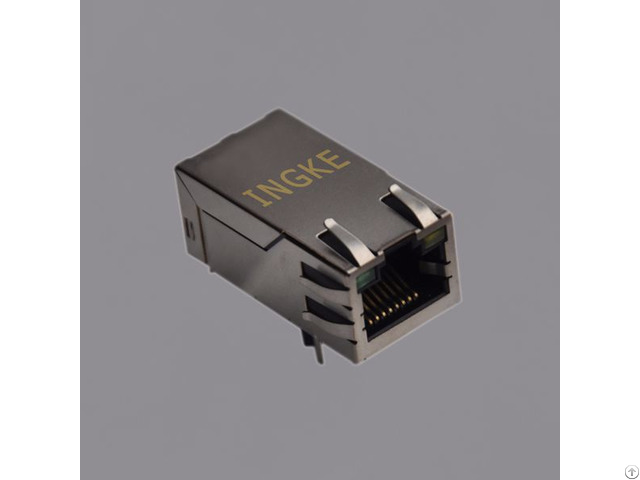

Ingke YKGU-8809NL 100% cross SI-51009-F Through Hole RJ45 Magnetic Jack Connectors Part Number : SI-51009-F

Made in China: YKGU-8809NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Green, Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Copper Alloy

Contact Finish : Gold

Operating Temperature : -40℃～85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic
