Ingke Ykgd 8129bnl Direct Substitute 7499111121a 1 Port Gigabit Rj45 Jacks With Integrated Magnetics - China

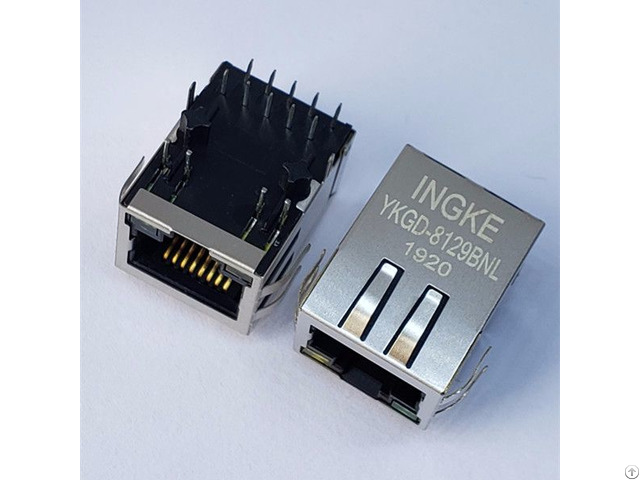

Ingke YKGD-8129BNL Direct Substitute 7499111121A 1 Port Gigabit RJ45 Jacks with Integrated Magnetics Part Number: 7499111121A

Made in China: YKGD-8129BNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90° Angle (Right)

Termination: Solder

LED Color: Yellow - Green

Number of Cores per Jack: 8

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Down

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 30µin (0.76µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;74990111215 7499010441 74990112116A 7498011211 7499110122 7499210124A 7499021125 7499411122 7499511440 7499511611A 7499011001A 7499011002 7499111001A 7499110124 7499121211 7499010003A 7499010126A 7498210220A 7499410213 7498111120R 7499111446 7499111447 7499111221A 7499110123 7499210123 7499151120 7497110616 7499010121A 74990101212 7499010122 7498011122R 7499010211A 74990111217

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
