Ingke Ykgd 8049anl Cross A60 113 331p432 Magnetic Rj45 Connectors - China

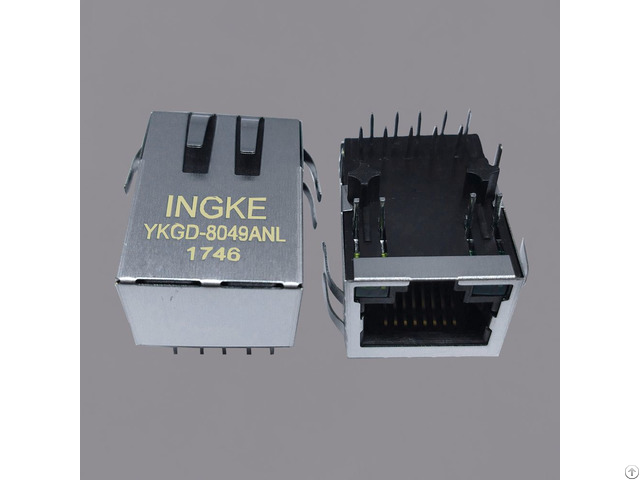

Ingke YKGD-8049ANL cross A60-113-331P432 Magnetic RJ45 Connectors Part Number : A60-113-331P432

Made in China: YKJD-0189DNL Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Lock

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃～85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Manufacturer: Ingke Technology Co., Ltd

INGKE can provide 3D model for engineers' design

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: 1).

High-quality, OEM factory for RJ45 Connector more than 10 years.

2).

Cost reduction, lead time within 1 week, FREE samples.

3).

After sales services 24*7 to help you solve any kind of problems Ingke Technology Mass production of the following models;

A64-114-231N411 A63-114-213N491 A63-114-231N435 A60-114-231N432 A64-114-271P521 A60-112-300P492 A64-112-271P521 A63-114-431P112 A60-112-300P432 A60-114-300P432 A60-112-331P432 A60-114-300P492 A60-112-331P411 A60-114-331P432 A60-112-235N414 A60-114-331P411

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.

  Our Products:

  - a60 113 331p432 edac 1 port rj45 magnetic jack connector

  - we 7499111446 gigabit magnetic rj45 connectors

  - gigabit 2250022 4 magnetic rj45 jacks

  - trp 6605444 6 gigabit magnetic rj45 jacks

  - si 61031 f gigabit rj45 modular jack
