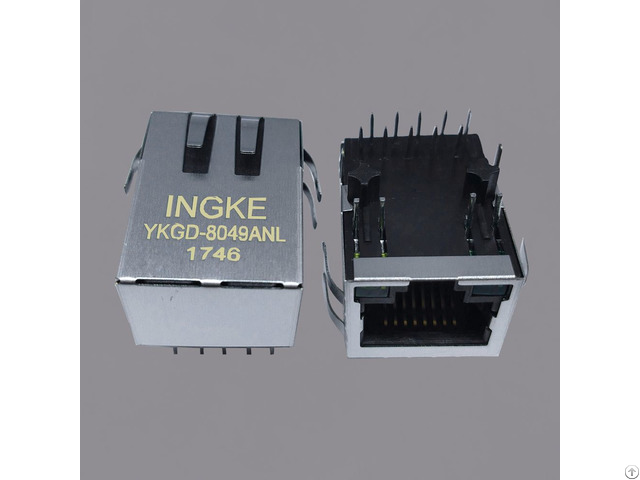

Ingke Ykgd 8049anl 100 Percent Cross Jkm 0001nl Single Port Rj45 Magnetic Jack - China

Ingke YKGD-8049ANL 100% cross JKM-0001NL Single Port RJ45 Magnetic Jack Part Number : A60-113-331P432

Made in China: YKJD-0189DNL Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Lock

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃～85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Manufacturer: Ingke Technology Co., Ltd

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: (1).

OEM factory for Connector more than 10 years.

(2).

Cost reduction, lead time within 1 week, FREE samples.

(3).

After sales services 24*7 to help you solve any kind of problems

(4).

Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%, moreover the price are more competitive for 5-10% over the market

(5).

Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm) Ingke Technology Mass production of the following models; J20-0017 J20-0019 J2039H3B J2039H3C J2042H3C J3006G21D J3018G21K J3026G21D J8064D649P J8064E62 J8064E64 J8064E66 J8064E68 JK0-0026 JP006821U JP011821U JP026821U JV006I21 JV026I21 J0C-0003NL JK0-0018NL JK0-0026NL JK0-0014NL JK0-0016NL JK0-0017NL JK0-0020NL JK0-0025NL JC0-0063NL JG0-0045NL JG0-0051NL JC0-0019NL
