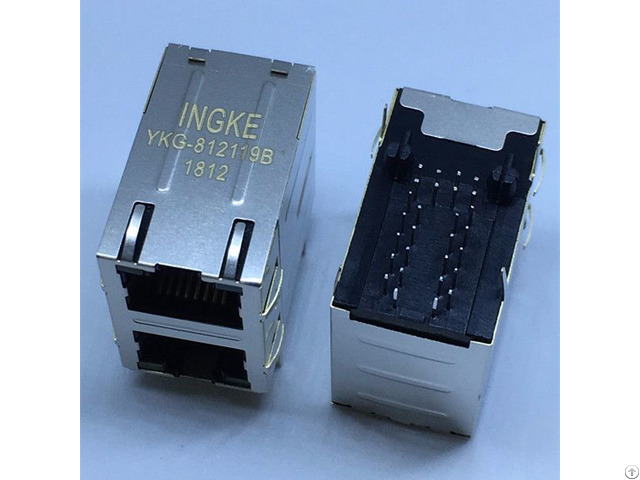

Ingke Ykg 812119b 100 Percent Cross 7499151120 2 Port Through Hole Integrated Rj45 Jacks - China

Ingke YKG-812119B 100% cross 7499151120 2 Port Through Hole integrated RJ45 jacks Part Number: 7499151120 Made in China: YKG-812119B Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging : Tray Connector Type: RJ45 Number of Ports : 2 Number of Rows : 2 Applications : 10/100/1000 Base-T, AutoMDIX Mounting Type : Through Hole Orientation: 90° Angle (Right) Termination : Solder LED Color: Yellow - Green Number of Cores per Jack : 8 Shielding : Shielded, EMI Finger Features: Board Guide Tab Direction : Up and Down Contact Material : Phosphor Bronze Contact Finish : Gold Operating Temperature : -40℃~85℃ Flammability Rating: UL 94 V-0 Contact Finish Thickness : 30µin (0.76µm) Shield Material : Copper Alloy Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

7499010122 7498011122 7499111121A 7498011122R 7498011122R 74990111215 7499211121A 7499210121A 7499211125 7498111001 7498111001 7498111001

7499111446 7499111221A 7499111447 7499151120 7497110616 7499010121A 7499011121A 74990100011A

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.

  Our Products:

  - a60 113 331p432 edac 1 port rj45 magnetic jack connector

  - we 7499111446 gigabit magnetic rj45 connectors

  - gigabit 2250022 4 magnetic rj45 jacks

  - trp 6605444 6 gigabit magnetic rj45 jacks

  - si 61031 f gigabit rj45 modular jack
