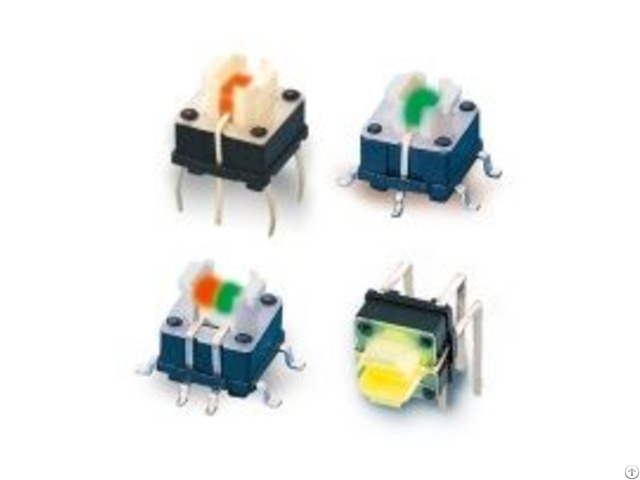

  • Illuminated Tact Switches Tp615 Series - Taiwan

    price: contact company for price

    Feature: 1 - Snap-in type, can be mounted directly on P.C.B board.

    2 - Several LED colors options.

    3 - Adequate for DIP & SMT.

    4 - Several LED colors or bi-color or RGB color options.

    Applications: Operating switches in all types of electronic equipment such as audio apparatus, office equipment, communications apparatus, TV sets, VCRs, etc.

    Specifications:

    1 - Item: Standard

    2 - Rating: 50mA 12VDC

    3 - Insulation Resistance: 100MΩ Min (at 500 VDC)

    4 - Dielectric Strength: AC 250V (50/60 Hz for 1 minute)

    5 - Contact Resistance: 100mΩ Max.

    (Initial)

    6 - Electrically Life: 300, 000 Cycles Min

    7 - Ambient Temperature: -25°C~ +70°C

    8 - Operating Force: 160 ± 50gf


    Company Contact:


    • Phone: 886-2-82261490

    • Address: Fl. 10-3, No.738, Chung-Cheng Road, Zhonghe District,, New Taipei City, Taiwan , Taiwan

    • Email: Email


    Published date: February 8, 2022

    • Business Description: Highly Electric Co.

      products including illuminated switch, safety limit switch, micro switch, IP67 waterproof switch, toggle switch, rocker switch, and customized switch are all with certified quality approval and earn customer's admiration.
