Illuminated Push Button Switches Tp613 Series - Taiwan

price: contact company for price

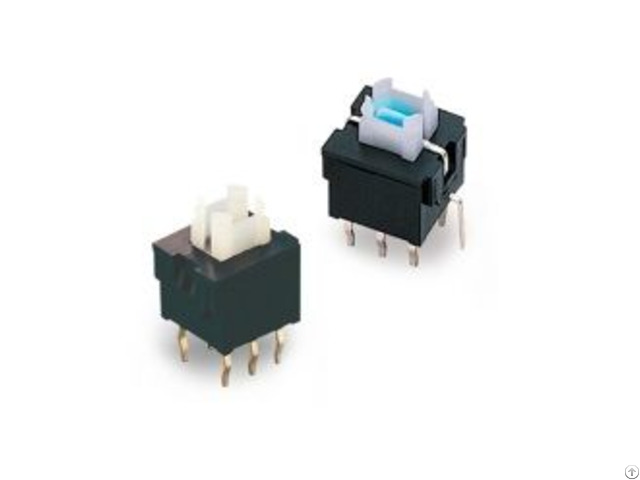

Illuminated Push Button Switches Tp613 Series

Products Photos Catalog Illuminated Push Photos Catalog

Feature: 1 - Precise design terminal type adequate for DIP IC pitch size (multiple of 2.54mm).

2 - Epoxy sealing treatment, free of flux entry.

3 - Several LED colors options.

4 - Side-actuated with right angle terminal.

Applications : Operating switches in all types of electronic equipment such as audio apparatus, office equipment, communications apparatus, TV sets, VCRs, etc.

Specifications:

1 - Item : Standard

2 - Rating: 0.1A 30VDC

3 - Insulation Resistance: 100MΩ Min (at 500 VDC)

4 - Dielectric Strength: AC 500V (50/60 Hz for 1 minute)

5 - Contact Resistance: 50mΩ Max.

(Initial)

6 - Electrically Life: 10, 000 Cycles Min

7 - Ambient Temperature: -10°C~ +80°C

8 - Operating Force: 150 ± 100gf (Momentary)

9 - Operating Force: 250 ± 100gf (Alternate)

10 - Operating Force: 200 ± 100gf (Momentary With Click)


Company Contact:


  • Phone: 886-2-82261490

  • Address: Fl. 10-3, No.738, Chung-Cheng Road, Zhonghe District,, New Taipei City, Taiwan , Taiwan

  • Email: Email


Published date: February 8, 2022

  • Business Description: Highly Electric Co.

    products including illuminated switch, safety limit switch, micro switch, IP67 waterproof switch, toggle switch, rocker switch, and customized switch are all with certified quality approval and earn customer's admiration.
