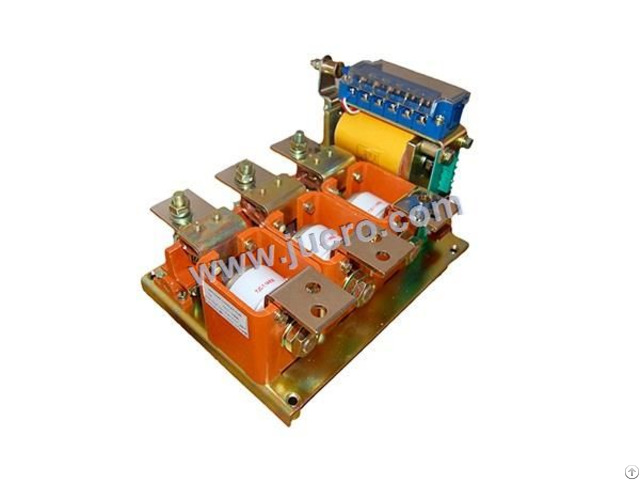

Hvj5 1 14kv Vacuum Contactor - China

1 - General

HVJ5 1.14 kv 1000A AC vacuum contactor is designed for long-distance making and breaking of circuit, frequent starting and controlling of AC motors in the power systems, with AC 50Hz-60Hz, rated voltage of 1, 140V and rated current to 1000A.

It also can be equipped with thermal relay and all kinds of protection apparatus like electromagnetic starter, especially applied to explosion-proof starter and so on.

2 - Main technical parameter

Rated voltage: 1140 V

Control voltage: 36 V, 110 V, 220 V, 380 V

Rated current: 1000A

Opening distance: 2±0.2 mm

Over travel: 1±0.2 mm

Final pressure: 30±3 N

Main circuit power frequency voltage withstand: 4200 V

Auxiliary circuit power frequency voltage withstand: 2500 V

Control circuit power frequency voltage withstand: 2000 V

Making capacity: 10Ie, 100 times

Breaking capacity: 8Ie, 25 times

Limit breaking current(A): 10000, 3 times

Electricity life times AC3: 60*104

Electricity life times AC4: 1.5*104

Mechanical life times: 300*104

Overload capacity: 8Ie 10S

Remark: “Ie” is Rated current of main circuit.

Product model Rated voltage (V) Rated current(Main circuit)A Main contacts parameters Power frequency voltage

resistance V(effective value) Main circuit Control circuit Opening distance(mm) Over travel

(mm) Final pressure

(N) Main circuit Auxiliary circuit Control circuit

HVJ5-1.14/1000 1140 36.110.220.380 1000 2±0.2 1±0.2 30±3 4200 2500 2000

Product model Making capacity Breaking capacity Limit breaking current(A) Electricity life times Mechanical life times Overload capacity AC3 AC4 HVJ5-1.14/1000 10Ie, 100times 8Ie, 25 times 10000, 3 times 60*104 1.5*104 300*104 8Ie 10S
