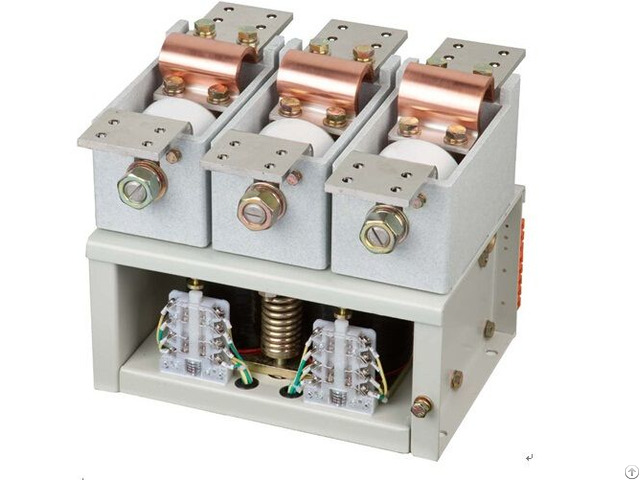

Hvj30 Vacuum Contactor - China
price: 408.00 Dollar US$
HVJ30-1.14/1000, 1250 series AC vacuum contactor is applicable for AC 50HZ power system of rated voltage 1.14KV and rated current up to 1000 A～1250Ato open and close circuit, start and control AC motor frequently.
It is suitable for composed magnetic starter with various protective devices (JDB electronic integrated protector, JR9 type over current protection device, resistance-capacitance absorbers).
It is particularly suitable for compose a explosion-proof magnetic starter and large mineral switchgear.
Rated voltage: 1.14 kv
Rated current: 1000A 1250A
Making capacity(A): 5000(100 times)
Breaking capacity(A): 4500(10 times)
Limit breaking capacity(A): 5000(3 times)
Electrical life times(AC3): 600, 000 times
Electrical life times(AC4): 6, 000 times
Mechanical life times: 1, 000, 000 times
Rated operating frequency (AC3): 600 times /h
Rated operating frequency (AC4): 120 times /h
Short-time operating frequency(20s): 1000 times /h
Contacts separation: 2.8±0.1 mm
Over travel: 1.0±0.1 mm
Company Contact:
- Posted By: Hubei Jucro Electric CO., LTD.
- Phone: 18162974229
- Address: 4th Road Xiannv, Zhijiang City, Hubei Province, China, YIchang City, Hubei , China
- Email:
- Website: https://www.jucro.com
Published date: July 12, 2019
- Business Description: Hubei Jucro Electric CO., LTD. is a private enterprise that produces and exports high voltage electrical equipment.
The main products are: vacuum contactors, vacuum circuit breakers, vacuum interrupters and related accessories.
The product rated voltage range covers 660KV/1.14KV/3.6KV/7.2KV/ 24KV/40.5KV.
The rated current of the product ranges from 125A to 4000A.
