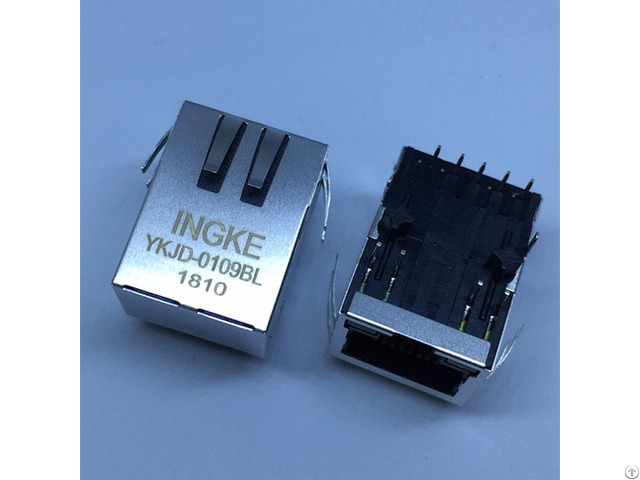

Hr871156c Ykjd 0109bl Single Port Magnetic Modular Rj45 Jacks - China

Ingke YKJD-0109BL 100% cross HR871156C Single Port Magnetic Modular RJ45 Jacks Part Number: HR871156C Made in China: YKJD-0109BL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging : Tray Connector Type: RJ45 Number of Ports : 1 Number of Rows : 1 Applications : 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE) Mounting Type : Through Hole Orientation: 90° Angle (Right) Termination : Solder LED Color: Yellow - Green Number of Cores per Jack : 4 Shielding : Shielded, EMI Finger Features: Board Guide Tab Direction : Down Contact Material : Phosphor Bronze Contact Finish : Gold Operating Temperature : -40℃~85℃ Flammability Rating: UL 94 V-0 Contact Finish Thickness : 30µin (0.76µm) Shield Material : Copper Alloy Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

HY901420B HR902401A HR981199C HR851190A HR901105C

HR911275C HR912401H HY971180A HR911001C HR911105A

HR902260C HR902601B HR902802B HR911261C HR911402A

HY981160C HR901205C HR941163C HR891181A HR871181C

HR961120C HR971475C HR911105C

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
