Hfj11 Lghrpe L21rl 1 Port Gigabit Tab Down Poe Rj45 Magnetic Modular Jacks - China

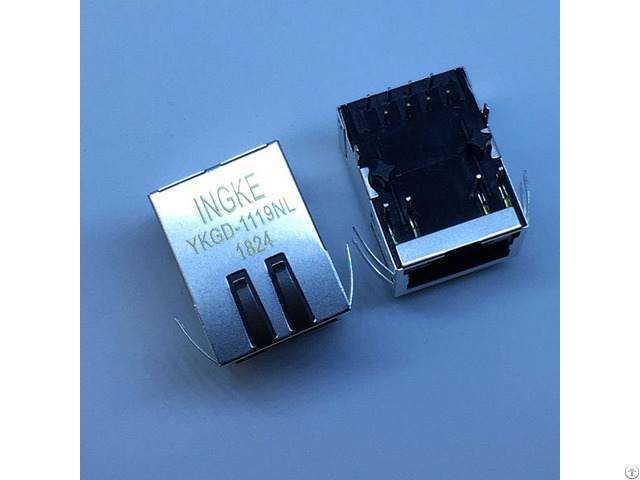

Ingke YKGD-1119NL 100% cross HFJ11-LGHRPE-L21RL 1 Port Gigabit Tab-Down POE+ RJ45 Magnetic Modular Jacks Part Number : HFJ11-LGHRPE-L21RL

Made in China: YKGD-1119NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Yellow - Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 15µin (0.38µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

HFJ11-1G01E-L12RL HFJ11-1G06ERL HFJ11-1G06E-L11RL HFJ11-1G06E-L12RL HFJ11-1G11ERL HFJ11-1G11E-L11RL HFJ11-1G11E-L12RL HFJ11-1G16ERL HFJ11-1G16E-L11RL HFJ11-1G16E-L12RL HFJ11-1G41ERL HFJ11-1G41E-L11RL HFJ11-1G41E-L12RL HFJ11-1G46ERL HFJ11-1G46E-L11RL

HFJ11-1G46E-L12RL HFJT1-E1G16C3-L55RL HFJT1-E1G16C3-L71RL HFJT1-E1G16C3-L72RL HFJT1-E1G20C3RL HFJT1-E1G20C3-L11RL HFJT1-E1G20C3-L12RL

HFJT1-E1G20C3-L17R

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
