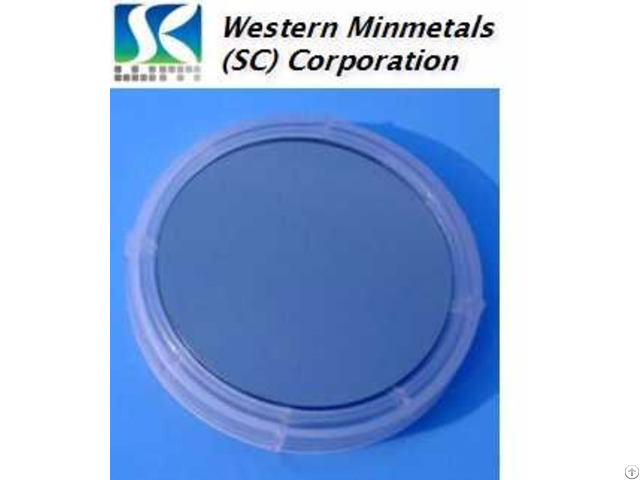

Gallium Arsenide Gaas Si Doped Wafer 2 3 4 At Western Minmetals Sc Corporation - China
price: 1.00 Dollar US$
Diameter: 50.8+/- 0.2, 76.2+/-0.3, 100+/-0.3 mm
Dopant: Silicon
Conduct Type: SC/N
Growth Method: VGF
Thickness: 220-350+/-20 um
Crystal Orientation: <100>+/-0.5degree
Orientation Flat / Length: 16+/-1, 22+/-1, 32+/-1 mm
Identification Flat / Length: 8+/-1mm, 11+/-1, 18+/-2 mm
Orientation / Identification Flat Option: EJ, US or Notch
Carrier Concentration: (0.3-1.0)E18 or (0.4-4.0)E18 /cm3
Resistivity: (0.8-9.0)E(-3) or 1E(-2) - 1E(-3) Ohm.
cm
Hall Mobility: 1, 500-3, 000 cm2/v.
s
EPD: 5, 000 /cm2 max
Particle Count: <50 (size>0.3um, count/wafer)
TTV/Bow/Warp: 10um max
Laser Mark: Upon backside or as required
Front / Backside Finish: P/P P/E
Product Packing: Aluminium Composite
Transportation Packing: wafer container, carton box outside
Application: extensively used for LED or LD applications, as well as optoelectronic, microelectronic industry
Company Contact:
- Posted By: Western Minmetal (SC) Corporation
- Phone: 862885187252
- Address: E2-1-1011, Global Center, No.1700 Tianfu Avenue No, Chengdu , China
- Email:
- Website: http://www.matltech.com
Published date: December 24, 2017
- Business Description: Western Minmetals(SC) Corporation was founded in Chengdu.
We are an
important supplier of refractory material such as tungsten, molybdenum
and mica to the advanced industry.
We are a leading supplier of high purity materials for use in semiconductor compounds, imaging equipment and information industry.
We are a major supplier of mono crystal silicon, cadmium telluride thin film cell material and semiconductor compounds for solar photovoltaic, integrated circuits and other electronic industry.
We are an indispensable supplier of specialty chemicals and inorganic oxide materials to special metals and chemicals field.
