Focus Adjustable Red Line Laser - China

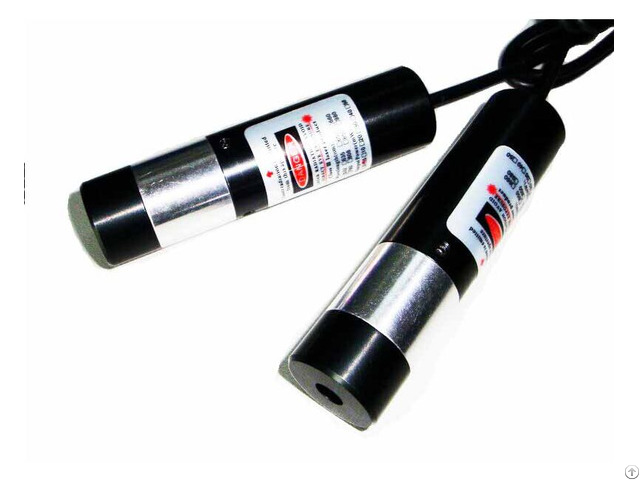

Focus adjustable red line laser module

Conventional line lasers are adjusted in focus by rotating the line optics and inserting an focusing tool into the laser to adjust the position the collimating lens.

This process make line rotating and also can result in the laser changing power classification.

The unique focusing mechanism of our products allows the focus to be adjusted without the need for removing line optics by simply rotating the white ring of the laser.

This novel design produces improved line quality whilst maintaining accurate alignment.

Specifications: Wavelength: 635nm, 650nm

Output power: 1mW, 5mW, 10mW, 20mW, 30mW, 50mW, 100mW

Beam divergence: 0.1mrad ~ 0.6mrad

Line thickness: Less then 2mm at 5m

Fan angle: 10°～120°

Laser line accuracy: <30”(at 5m)

Operating Voltage: DC3V-5V

Operating Temperature: -10℃～70℃

Storage Temperature: -30℃～80℃

Dimensions: Φ16×120mm, Φ16×60mm

MTTF: 8000 hours
