Flat Suction Cup Maf - China
price: 3.00 Dollar US$

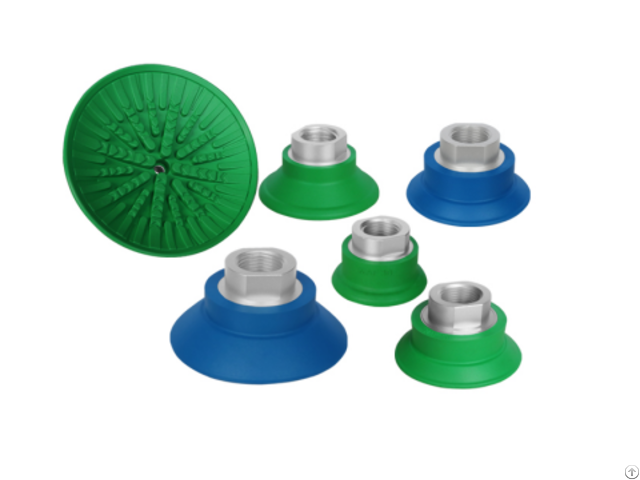

Flat suction cup MAF
Diameter: 30 to 100mm
Material: NBR
Suction cups and joints are vulcanized and fixed
Round flat suction cup, small internal volume, high horizontal and vertical holding force, is a rational choice for handling oily surface workpieces
Handling of thin steel sheets and aluminum sheets without deformation
For use in feeder systems for press lines in the automotive industry
Special groove on the bottom prevents oily sheets from slipping, permitting precise positioning in stamping presses etc.
Introduction and application：
Large-area structured inner support
Various material hardness values
For a wide range of workpiece sizes and shapes
No deep-drawing of the workpiece; capable of handling high lateral forces, even on oily metal sheets
Excellent sealing, even on slightly curved surfaces
Optimum adaptation to varying workpieces
Company Contact:
- Posted By: Amila Automation Technology Co.,Ltd
- Phone: 18012729370
- Address: WO68 Creative Industry Park B203-206,Xiangyang Road,Gaoxin District,Suzhou, Suzhou , Jiangsu , China
- Email:
- Website: http://www.amila-tech.com/en/
Published date: June 4, 2019
- Business Description: AMILA focuses on the research and development of vacuum grabbing products and provides intelligent solutions for automation.
With the progress of intelligent manufacturing and robotics, AMILA is keeping an eye on subdivision and market.
The mission of AMILA is to provide convenient, high performance, green products and give life to robots for intelligent mobile solutions.
