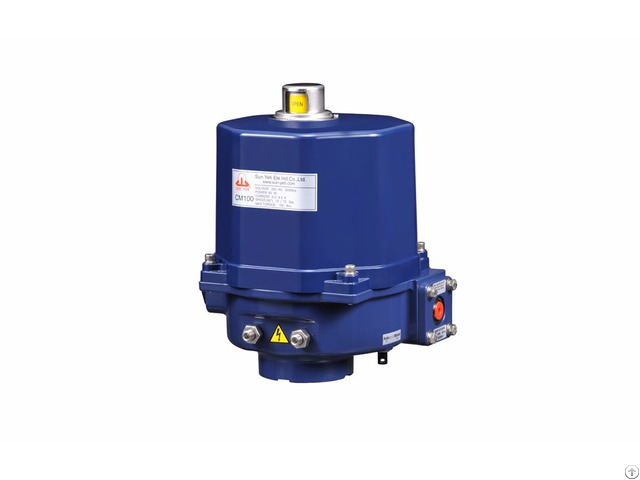

Cm Quarter Turn Electric Actuator Cm100 - Taiwan

Specification:

Power：50W

Max Torque：100 N.

m/885 lb.

in

Speed：10 Sec/90°

Weight：7.6 kg/17 lb

Mounting Flange(ISO 5211)：F07 Feature:

Enclosure:

● Base：Dry powder coated aluminum alloy.

● Top cover：ABS anti-collision plastic material.

Motor :

● B class insulation.

● Built-in thermal protection prevents motor burning out.

AC motor：115±5℃/239±9� �� DC motor：90±5℃/194±9� � Manual override device :

● Users can open or close the actuator with manual override device.

Please remove the red dust proof plug on the manual override device when manual operation is needed and put the red dust proof plug back after finishing the manual operation.

Duty Cycle :

● 30% duty cycle.

Position indicator : ● All models have a continuous mechanism position indicator on the top of actuator cover to indicate the valve's position.

Working Conditions : ● Ambient temperature：

Plastic cover -10℃~+65℃

Aluminum cover -30℃ ~ +65℃ / -22℉ ~ +149℉

●The humidity：30%~95% Conduit entrance

● Standard：1/2" PS

● Optional：3/4" NPT, 1/2" NPT, M20 Various voltage

● 24V AC/DC

● 110/220V 1-Phase

● 220/380/440V 3-Phase Aluminum cover(round shape)

● The option is suitable for outdoor applications.

Hand-wheel

● When using manual override device, user can choose the hand-wheel to operate the actuator easily as an option.

Manual power-off device

● When power is supplied, users can switch from "Auto"to"Manual"with a lever to operate the manual override device to either open or close direction.

Company Contact:

• Posted By: Sun Yeh Electrical Ind. Co., Ltd.

• Phone: 886-4-26985666

• Address: No. 68, Lane 854, Sec. 1, Shatien Road., Dadu Dist., , Taichung City, Taiwan , Taiwan

• Email:

• Website: https://www.sunyeh.com

• Business Description: Sun Yeh Electrical Ind.

  Co., Ltd. was founded in 1986 - We have adhered to the highest principle of understanding customer's demand in depth, and continuing to develop Electric Actuator, Valve Actuator, Electric Valve Actuators, quarter-turn actuator, fail-safe spring return actuator and linear actuator.

  It has won the new type patent in Taiwan, U.S.A., Japan and China.

  Sun Yeh offers various products which are widely applied to the control on industry, water treatment, air conditioning, chemical engineering, food industry and so on.

  Quality Control

  Products of superior quality require sophisticated control systems using advanced inspection instruments and state-of-the-art facilities to ensure that every step in the production process is accurate and complete.

  In order to provide high quality prodcuts to customers, SUN YEH products are 100% inspection before shipping.

  Quality Certification

  Sun Yeh electric actuators are built on high quality; all products have been certified with approval of CE and CSA.

  As well as the ISO 9001, ISO 14001, OHSAS 18001, REACH, and RoHS certificates.

  "Perfect Solution" is the only goal for Sun Yeh.
