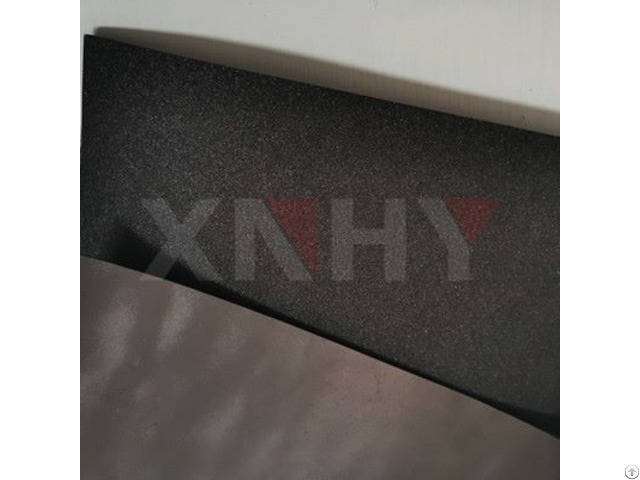

Bipolar Plates For Zn Br Flow Battery - China
price: 1.00 Dollar US$
Bipolar plate is one of the key components for Zn-Br Flow battery, the bipolar plates in the battery stack serve the purpose of anode electrode for one cell and a cathode electrode for the next cell, and isolate the negative and positive electrolyte in the flow battery.
The bipolar plate for Zn-Br flow battery is a kind of carbon plastic electrode which uses polyethylene as adhesive.
The active coating material is added on one side(Br side) of our bipolar plate, which is used as anode materials.
The other side(Zn side) of bipolar electrode is used as the cathode materials for the next cell unit.
There are two different kinds of active materials coated on the Br-side surface to suit different requirements, and fiber-shape materials are added to improve mechanical strength and anti-deformation of bipolar electrodes.
Company Contact:
- Posted By: XNHY
- Phone: +86 13805168867
- Address: NO.28 Huju South Road, Nanjing , Jiangsu , China
- Email:
- Website: https://www.bipolar-plate.com
Published date: December 16, 2019
- Business Description: Nanjing Xunenghanyuan New Material CO., LTD. specializes in new energy battery materials and components.
Our products include bipolar plates and membrane separators, which are broadly applied for various flow battery stacks such as Vanadium Redox Batteries (VRB) and Zinc Bromine Batteries (ZRB).
In addition to standard products, we can also provide customized solutions for specific applications.
Bipolar plates and separation membranes are both polyethylene based.
Depending on unique formula and advanced processing technology, polymer plastic electrodes have many advantages such as low resistivity, high tensile strength, corrosion resistance, deformation resistance, etc, and further to reduce the production costs of flow batteries, promote the development of energy storage industry.
We have licenses of import and export, our high quality products enjoy a high reputation from customers both at home and abroad.
Our products include carbon plastic bipolar plates, membrane separators, integrated terminal electrode, graphite electrode, graphite felt, etc.
In addition to standard products, we can also customize non-standard products for specific requirements.
