47f1205bgydnw2nl 1 Port Through Hole 10 100 Base Tx Rj45 Lan With Transformer - China

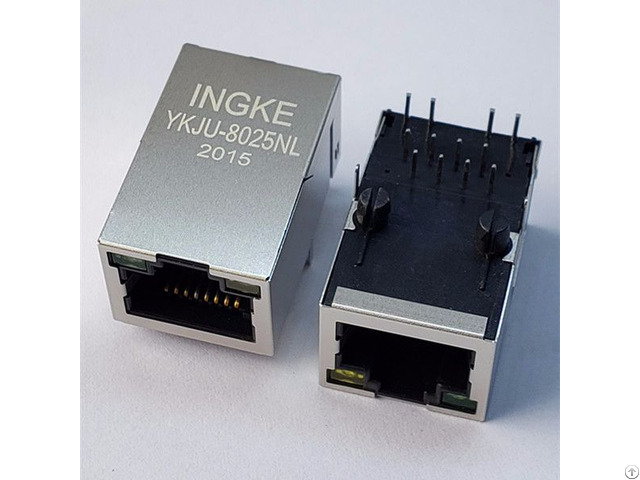

INGKE YKJU-8025NL Direct Substitute 47F1205BGYDNW2NL 1 Port Through Hole 10/100 Base-TX RJ45 LAN with Transformer Part Number: 47F1205BGYDNW2NL Made in China: YKJU-8025NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging: Tray Connector Type: RJ45 Number of Ports: 1 Number of Rows: 1 Applications: 10/100 Base-T, AutoMDIX Mounting Type: Through Hole Orientation: 90° Angle (Right) Termination: Solder LED Color: Green - Yellow Number of Cores per Jack: 4 Shielding: Shielded Features: Board Guide Tab Direction: Up Contact Material: Phosphor Bronze Contact Finish: Gold Operating Temperature: -40℃~85℃ Flammability Rating: UL 94 V-0 Contact Finish Thickness: 15µin (0.38µm) Shield Material: Copper Alloy Housing Material: Thermoplastic Ingke Technology Mass production of the following models;M1-121999U13-1 M1-131939V12-1 M4-1B2119U13-1 M6-1B2119U13-1 N6-16019F513-1 M8-14111HQ83-1 N8-11191F513-1 RS3-21001D1A RS5-1000PH61 RSG-2H009P5G RUH-1C179YJR RU3-261A1D11 0B-0003A9BB3-1 RU1-161A9WGF RU4-161A9WGA RU9-26MA5WJQ RH1-4600KB13 RH2-26009R13 0C-000395WR3-1 05-A00137263-1 M1-16111HQ83-1

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.

  Our Products:

  - a60 113 331p432 edac 1 port rj45 magnetic jack connector

  - we 7499111446 gigabit magnetic rj45 connectors

  - gigabit 2250022 4 magnetic rj45 jacks

  - trp 6605444 6 gigabit magnetic rj45 jacks

  - si 61031 f gigabit rj45 modular jack
