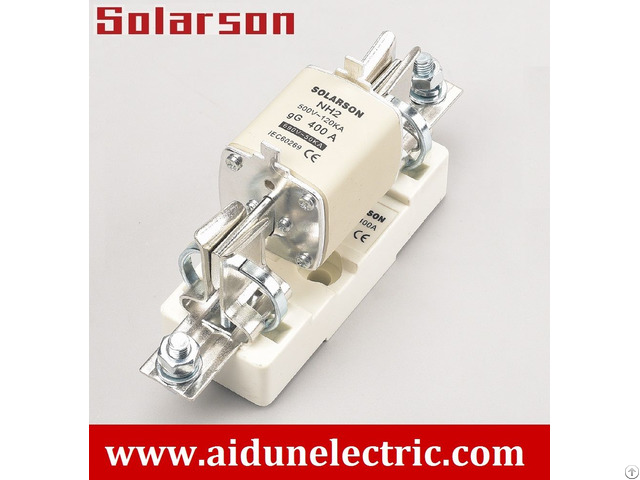

Low Voltage And High Breaking Capacity Hrc Nh2 Fuses Amp Fuse Bases Gg Up To 400a - China

Quick Details

Place of Origin:

Zhejiang, China (Mainland)

Brand Name:

Solarson

Model Number:

Nh2

Usage:

Low Voltage

Breaking Capacity:

High

Safety Standards:

IEC60269, EN60269

Product name:

NH2

Rated voltage:

500/690V

Rated current:

63A~200A, 250A, 315A, 355A, 400A

Standard:

IEC/EN60269

Certificate:

CE ISO CCC Supply Ability

Supply Ability:

500000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

cartons

Port

Shanghai, Ningbo Low voltage and high breaking capacity HRC NH2 Fuses & Fuse Bases 400VAC, 500VAC, 690VAC, 440VDC, 550VDC up to 400A gG Product Description Low power loss NH(NT) fuses & fuse bases for industrial protection, conform to Class GL/GG and Class aM, gR, aR.

General industrial applications or for the protection of motor circuits.

Version with voltage free metal gripping lugs for insulated fuses.

Light yellow ceramic available.

Technical Data: Rated Voltage: 400VAC, 500VAC, 690VAC, 440VDC, 550VDC Rated Currents: 63A, 80A, 100A, 125A, 135A, 150A, 160A, 200A, 250A, 315A, 355A, 400A

Breaking Capacity: 500V-120kA, 690V-80kA Function Level: gG/gL\gtr\aM\gM\aR

Standards: IEC60269, EN60269, GB13539

Company Contact:

• Posted By: Yueqing Aidun Electric Co.,ltd

• Phone: 13626533618

• Address: liushi , wenzhou , zhejiang , China

• Email:

• Website: https://aidunelectric.com

• Business Description: Yueqing Aidun Electric Co.,Ltd was found by a experienced engineer team and excellent sales team ten years ago.

  The enterprise specializes in Design and manufacturing new energy products and low &high voltage products ,our main products is DC fuse ,DC Surge protector device DC circuit breaker ,MC4,solar cable and other low voltage and high voltage products our products used for solar photovoltaic system,power system,communication system,wind power generation and so on.

  Our brand is “Solarson”,our main purpose is supply more green new energy products ,Our company grows fast and now our company integrate design R&D advanced production equipment and professional management system.

  our products have got CE,CB,TUV,CCC,RoHS and other certificates.

  Excellent quality product with good price ,we have gain a lot customers in China ,Aidun Electrical also have rich experience of export,now our main market is European ,Southeast Asia,Middle East,,America and so on.

  Our Products:

  - 10x38 hrc cylinder photovoltaic fuse link 1-6a, 8a, 10a, 12a, 15a, 16a, 20a, 25a, 30a

  - 14x51 hrc cylinder solar fuse link1- 6a, 8a, 10a, 12a, 15a, 16a, 20a, 25a, 30a

  - 14x51 iec cylindrical fuse holder ce gg 500vac 690vac

  - tuv solar y branch mc4 fuse connector 30a 2 5 6mm2 60a 10 16mm2

  - dc1500 1000v tuv solar pv cable
