Din Fuse Holder 10x38 14x51 22x58 500vac 690vac - China

Quick Details

Place of Origin:

Zhejiang, China (Mainland)

Brand Name:

Solarson

Model Number:

RT18

Usage:

Low Voltage

Breaking Capacity:

High, 50kA

Safety Standards:

IEC 60269, EN60269

Rated voltage:

500VAC 690VAC

Rated current:

125A

Certificate:

CE ISO CCC

Color:

white

Service:

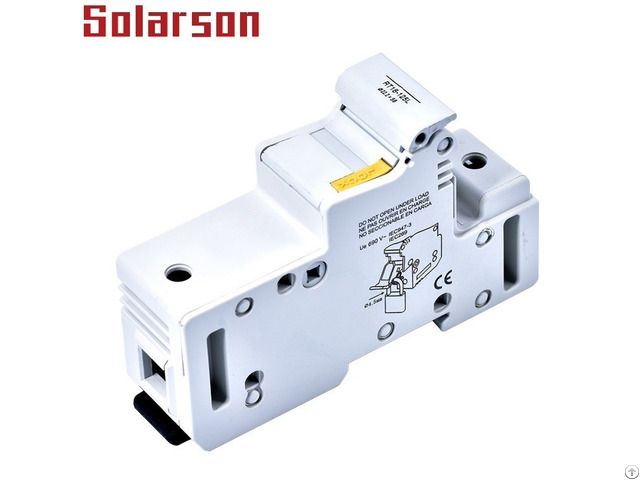

OEM, ODM DIN Fuse and Fuse Holder 10X38 14x51 22X58 32A 63A 125A (CE ) Product Description China Aidun Electrical produce “SOLARSON”brand RT18L series of 22x58mm DIN Rail Mounted Fuse Holder are used for 10X38mm 14x51mm 22X58mm size fuses, the fuse holder are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger).

Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version.

Technical data Voltage: 500VAC 690VAC 500VDC Ampere Rating of fuses: 2A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 63A, 80A, 100A, 125A Breaking Capacity: 50kA Operating class : gL/gG, aR, time delay, aM Standard: IEC 60269-2 and IEC 60947-3 UL248

Company Contact:

• Posted By: Yueqing Aidun Electric Co.,ltd

• Phone: 13626533618

• Address: liushi , wenzhou , zhejiang , China

• Email:

• Website: https://aidunelectric.com

• Business Description: Yueqing Aidun Electric Co.,Ltd was found by a experienced engineer team and excellent sales team ten years ago.

  The enterprise specializes in Design and manufacturing new energy products and low &high voltage products ,our main products is DC fuse ,DC Surge protector device DC circuit breaker ,MC4,solar cable and other low voltage and high voltage products our products used for solar photovoltaic system,power system,communication system,wind power generation and so on.

  Our brand is “Solarson”,our main purpose is supply more green new energy products ,Our company grows fast and now our company integrate design R&D advanced production equipment and professional management system.

  our products have got CE,CB,TUV,CCC,RoHS and other certificates.

  Excellent quality product with good price ,we have gain a lot customers in China ,Aidun Electrical also have rich experience of export,now our main market is European ,Southeast Asia,Middle East,,America and so on.
