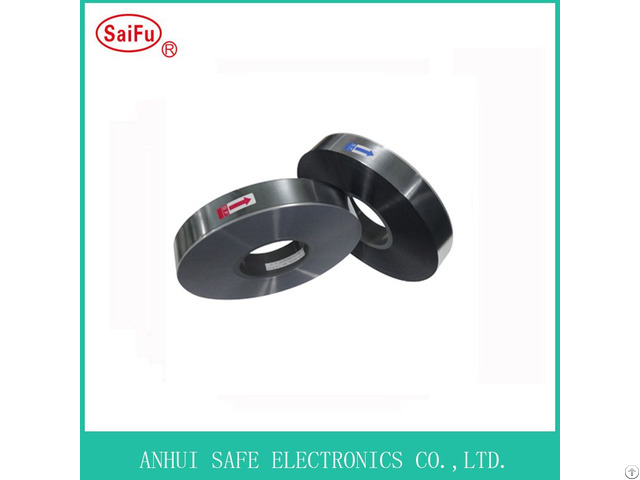

Single Margin Opp Film With One Side Zn Al Metallized - China

Technical specifications

Model MPP(Metallized Polypropylene Film)

Material BOPP

Hardness Soft

Transparency Opaque

Processing Type Multiple Extrusion

Thickness 2.2-12um

Width 4.5-130mm

Density 0.905±0.005 g/cm3

MOQ 1 kilogram

Margin Value 0.4mm 1mm 1.5mm 2mm 2.5mm

Production Capacity 120 Tons Per Month

Types of Matallized Layer Al/Zn Metallized Film, Al Metllized Film

Size Available on Request (Customized Metallized Film) *Product Description*

1 - We mainly offer finished capacitor film: Aluminum/Zinc metallized film with reinforced edgefor capacitors used.

2 - We can supply you metallized polyester/Polypropylene Film for capacitors(MPET/MPP film) .

3 - We also can offer you Capacitor Polypropylene Rough film type RPP/RRPP.

*Dimensions(mm)*

Item Thickness

(um) Width(mm) Margin Value(mm) ID(mm) OD(mm)

Metallized Polypropylene Film 2.2, 2.3, 2.4, 2.8, 2.9, 3, 4, 5, 6, 7, 8, 9, 10, 12 14, 17.5, 21, 26, 30, 35, 37.5, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 115, 120, 125, 130 3.0, 2.5, 2.0, 1.5, 1.0 76 180, 240, 320 *Application*

Applied to capacitors for power system, refrigerators and air conditioners.

*Type Of Metallized Film*

1 - Aluminum metalized polypropylene film.

2 - Aluminum-Zinc alloy metalized polypropylene film.

3 - Aluminum-Zinc alloy metalized polypropylene film with heavy edge.

4 - Aluminum metalized polyester film.

5 - Aluminum-Zinc alloy metalized polyester film.

6 - Aluminum-Zinc alloy metalized polyester film with heavy edge.

*Specifications of Metallized film*

*Cores:

Material: Plastic

Width: Film Slit Width±0.3mm

Inner Diameter: 75mm +1.0mm/-0.5mm *Specifications of MPPZn/AlH Metallized Film:

Properties Unit Requirements

Density g/cm3 0.905±0.005

Thickness μm 2.2~12

Tensile Strength MD(MPa) ≥100

Elongation at Braek MD(%) 40~200

Heat Shrinkage MD(%) ≤5(120ºC, 10min)(120ºC10min)

Break-down Voltage V/μm ≥350(23ºC, DC)

Dissipation Factor - ≤10*10-4(20ºC, 1KHz)

RC ΩF ≥5*104 *Packaging & Delivery*

Packaging Details: Metallized Film Export Standard Carton

Delivery Detail: 7~15 days after payment

Port: Shanghai or Ningbo *Why you choose us?*

1 - Leading tachnology: Have a number of invention patents

2 - Stable quality: The company has the world's most advanced production equipment, and implement ISO9001 standard management.

3 - Reasonable price: Executive"Industrial products 10% Profit in the first.

"

4 - Large inventory: This is the guarantee of the timely delivery.

5 - Fexible production: User-specific products, starting from the next single.

6 - Internet Plus manufacturing: Through Ali, MIC, Baidu, GOOGLE, official website and community forum Sales.

7 - Cordial service: 7*24 hours online, prompt reply and timely delivery.
