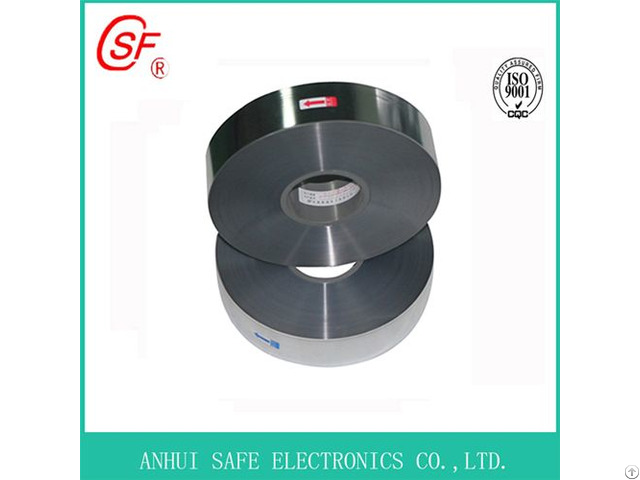

Segmented Metallized Film - China

Technical specifications

Model MPP(Metallized Polypropylene Film)

Material BOPP

Hardness Soft

Transparency Opaque

Processing Type Multiple Extrusion

Thickness 2.2-12um

Width 4.5-130mm

Density 0.905±0.005 g/cm3

MOQ 1 kilogram

Margin Value 0.4mm 1mm 1.5mm 2mm 2.5mm

Production Capacity 120 Tons Per Month

Types of Matallized Layer Al/Zn Metallized Film, Al Metllized Film

Size Available on Request (Customized Metallized Film) *Product Description*

1 - We mainly offer finished capacitor film: Aluminum/Zinc metallized film with reinforced edgefor capacitors used.

2 - We can supply you metallized polyester/Polypropylene Film for capacitors(MPET/MPP film) .

3 - We also can offer you Capacitor Polypropylene Rough film type RPP/RRPP.

*Specifications of Metallized film*

*Cores:

Material: Plastic

Width: Film Slit Width±0.3mm

Inner Diameter: 75mm +1.0mm/-0.5mm *Specifications of MPPZn/AlH Metallized Film:

Properties Unit Requirements

Density g/cm3 0.905±0.005

Thickness μm 2.2~12

Tensile Strength MD(MPa) ≥100

Elongation at Braek MD(%) 40~200

Heat Shrinkage MD(%) ≤5(120ºC, 10min)(120ºC10min)

Break-down Voltage V/μm ≥350(23ºC, DC)

Dissipation Factor - ≤10*10-4(20ºC, 1KHz)

RC ΩF ≥5*104 *Packaging & Delivery*

Packaging Details: Metallized Film Export Standard Carton

Delivery Detail: 7~15 days after payment

Port: Shanghai or Ningbo *Why you choose us?*

1 - Leading tachnology: Have a number of invention patents

2 - Stable quality: The company has the world's most advanced production equipment, and implement ISO9001 standard management.

3 - Reasonable price: Executive"Industrial products 10% Profit in the first.

"

4 - Large inventory: This is the guarantee of the timely delivery.

5 - Fexible production: User-specific products, starting from the next single.

6 - Internet Plus manufacturing: Through Ali, MIC, Baidu, GOOGLE, official website and community forum Sales.

7 - Cordial service: 7*24 hours online, prompt reply and timely delivery.

*Welcome to Contact Us*

Company Name: Tongling Tongfei Technology Co., Ltd.

Add: No.

695 North Taishan Road, Tongling, Anhui, China

Tel: 0086 0562 2821018

Fax: 0086 0562 2821558

Mobile Phone: 0086-13305620368 (Helen Hu)

Company Contact:

• Posted By: ANHUI SAFE ELECTRONICS CO LTD

• Phone: 0086-13305620368

• Address: NO.1771 QIFENG ROAD, SHIZISHAN ECONOMIC DEVELOPMENT ZONE, TONGLING CITY, ANHUI, CHINA, Tongling , Anhui , China

• Email:

• Website: http://www.film-capacitor.com

• Business Description: Anhui Safe Electronics Co., LTD., was founded in February 2007 - The company is located in Tongling City, Anhui Province, China, specialized in manufacturing metallized film for capacitor use and metallized film capacitors.

  Now its a member of CCOIC.

  Main products: Metallized film for capacitor use, CBB65（CBB61/60） AC motor capacitor and the SFPEC series of power electronics capacitors.

  The Dry DC filter capacitor of SFPEC series was rated as "High-tech Products in Anhui Province".
