Safety Capacitor Manufacturer 102m 500v China Supplier - China
price: 0.01 Dollar US$
Product Features 1 - High-k dielectric ceramic dielectric, encapsulated with flame retardant epoxy resin 2 - Pass the safety certificates of VDE / ENEC / IEC / UL / CSA / KC / CQC 102M Capacitor Electrical Characteristics: Technical Requirements Reference Standards: IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384 Certification Mark: VDE / ENEC / IEC / UL / CSA / KC / CQC Rated Voltage: 400VAC / 300VAC/500VAC Capacitance Range: 10pF to 10000pF Withstand voltage: 4000VAC for 1min/2000VAC for 1min/1800VAC for 1min Capacitance Tolerance: Y5P±10%(K ) ; Y5U, Y5V±20%(M) measured at 25℃, 1Vrms, 1KHz Dissipation Factor (tgδ): Y5P, Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃, 1Vrms, 1KHz Insulation Resistance(IR): IR≥10000MΩ, 1min, 100VDC Operating Temperature: -40℃ to +85℃ ; -40℃ to +125℃ Temperature Characteristic: Y5P, Y5U, Y5V Flame Retardant Epoxy Resin: UL94-V0 102M Capacitor Precautions 1 - Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.
2 - The storage temperature and the relative humidity should not be too low or too high.
Company Contact:
- Posted By: Dongguan Zhixu Electronics
- Phone: 86-0769-88313601
- Address: Dongguan Zhixu Electronics Beside Lvchong Bridge, Caibai Village, Daojiao Town, Dongguan City, Guang, Dongguan , Guangdong Sheng, China
- Email:
- Website: https://www.jeccapacitor.com/
Published date: October 19, 2021
- Business Description: Dongguan Zhixu Electronic Co., Ltd. (also JYH HSU (JEC)) has been dedicating itself to the R&D, production and marketing of safety capacitors since its establishment in 1988 - Main products: ceramic capacitors, EMI suppression capacitors (X2, Y1, Y2), film capacitors (CBB series, CL series, etc), varistors (surge absorber) and thermistors.
Related listings
-
Ceramic Capacitor 103 Manufacturers New Safety CapacitorsComponents - Capacitors - Dongguan Zhixu Electronics - China - October 19, 2021 - 0.01 Dollar US$Product features: Ceramic Capacitor 103 has wide working temperature range, low loss and high capacity stability. Electrical characteristics: Referenc e Standards: GB/T 2693-2001 ; GB/T 5966-1996 Rated Voltage(UR): 500 / 1K / 2K / 3K / 4K / 5K / 6K /...
-

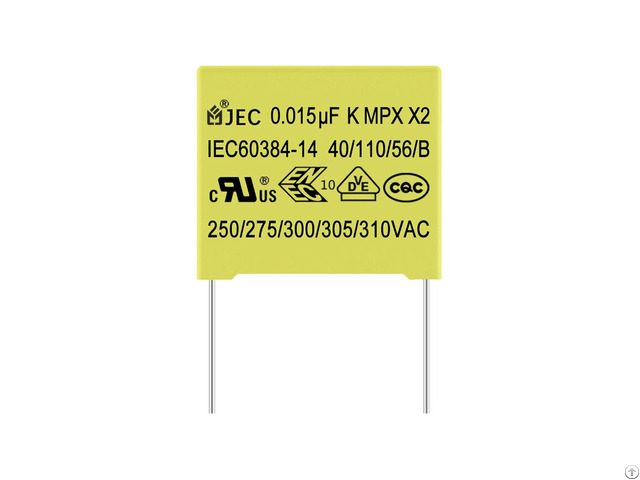

Mpx Mkp 275vac Polypropylene Safety Capacitor X2 ManufacturerComponents - Capacitors - Dongguan Zhixu Electronics - China - October 19, 2021 - 0.01 Dollar US$Product name: X2 Safety Capacitor Polypropylene: Film Capacitor Type: MPX (MKP) Approval Standards: IEC 60384-14 Features: 1)Non-inductive structure 2)High moisture-resistance 3)Sel f-healing property 4)Flame retardant type (compliance with UL94V-0) ...
-
