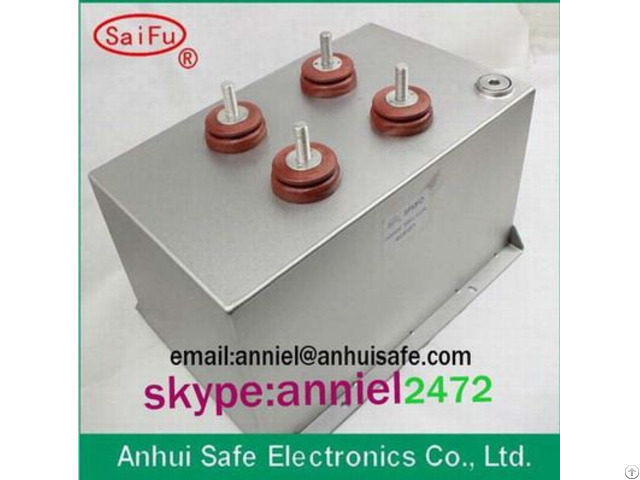

Pulse Capacitor Original Factory 1000uf 3000vdc - China
price: 100.00 Dollar US$
DC Filter CapacitorApplications
Used for rail traffic traction or the ship drive converter.
Used for various power industry inverter, such as high voltage variable frequency drive device
Used for the harmonic management, SVG equipment.
1 - Metallized polypropylene film convolute, special internal structure and non-inductive structure.
Copper screw leads, fire-retardant plastic shell, or heat tape wrapped, epoxy resin sealed.
2 - High frequency low ESR, can stand strong current, a very small parasitic inductance.
3 - Suit inverter current, continuous current, switching power supply, high frequency welding machine and others high capacity resonant circuit.
Magnetizier Capacitor/Pulse CapacitorTechnical Specification
Temperature Range
-40°C~+85°C
Capacity Range
100μF~12000μF
Capacitance deviation
±5%(J), ±10%(K)
Voltage
500VDC~15000VDC
Dielectric
1.5UN/60S
Dissipation
tgδ≤0.002(at 1KHz)
Insulation resistance
CxRs≥5000S(at20°C 100V.
DC 60S)
Shock current capability
dv/dt>50v/μs
Flammability
UL94V-0
Stray inductance
≤30nH
Effective Current
10~80A
Reference Standard
Enterprise standards in line with IEC61071, IEC61881, GB17702.1
Case components
aluminum, plastic, 304 stanless steel
Terminals
tinned brass nut or screws
Installation
whatever installation
Failure rate
50 FIT Whatsapp: +008613305627761 anniel(at)anhuisafe.
com
Company Contact:
- Posted By: Anhui Safe Electronics Co
- Phone: 8615212297582
- Address: No.1771 Qifeng Road, Shizishan Economy Develpment , Tongling , China
- Email:
- Website: http://www.film-capacitor.com/
Published date: April 9, 2017
- Business Description: We are a manufacturer in China have 20 years experence in
Film capacitors（AC & DC capacitors） and metalized film for capacitor use.
Our factory located in 5000 square
meters and obtained ISO9001 quality certificate, SGS certificate and VDE/TUV/UL/CQC
relevant products certificate.
And we have owned 5 patents for inventions and 10 utility patents.
In 2012 our company was awarded"National Hi tech Enterprise".
