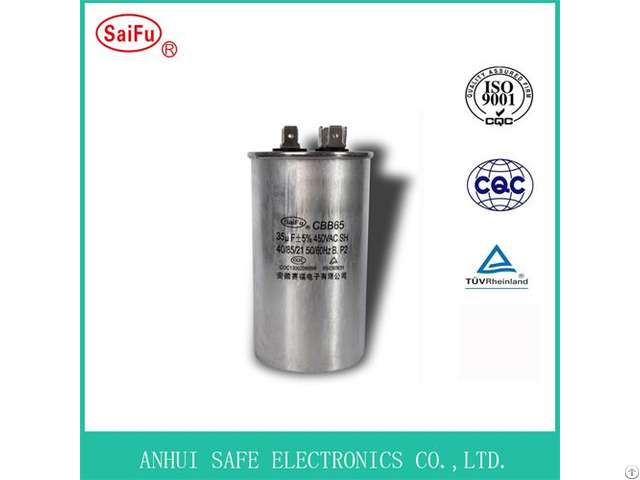

Cbb65 Ac Motor Run And Start Capacitor - China

Technical Specifications

Model NO.

CBB65 Capacitor

Type Water Heater Capacitor

Structure Single Capacitor

Manufacturing Material Polypropylene

Electrolyte Polypropylene Film

Reference Standards GB/T 3667.1(IEC60252-1)

Climatic category 40/70/21, 40/85/21

Class of operation Class B(10000h) Class C(3000h)

Class of safety production S2

Voltage range 200~500VAC

Capacitance range 2~100UF

Capacitance tolerance ±5% ±10% ±15%

Dissipation factor 20*10-4(100Hz, 20ºC)

Test voltage terminal to terminal UTT 2 Un for 2 seconds

Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Insulation Resistance ≥3000MΩ.

uF(100Hz, 20ºC, 1min)

Altitude ≤2000m

Remain voltage when put into operation No more than 10% of rated voltage

Maximum allowed voltage No more than 1.1 times rated voltage

Maximum allowed current No more than 1.3 times rated current

Package Type Export Standard Carton for CBB65 Capacitor

Production Capacity 500, 000PCS/Month

MOQ 1PCS

Size Available

*Note: The Composite Capacitor can be also customized producing according to our customer's request.

***Packing&Delivery** *

Packing: Export Standard Carton Packing for Capacitors

Delivery Detail: 7~15 days after payment

Port: Shanghai or Ningbo ***Welcome to Contact Us***

Company Name: Tongling Tongfei Technology Co., Ltd.

Add: No.

695 North Taishan Road, Tongling, Anhui, China

Tel: 0086 0562 2821018

Fax: 0086 0562 2821558

Mobile Phone: 13305620368 (Helen Hu)

Company Contact:

• Posted By: ANHUI SAFE ELECTRONICS CO LTD

• Phone: 0086-13305620368

• Address: NO.1771 QIFENG ROAD, SHIZISHAN ECONOMIC DEVELOPMENT ZONE, TONGLING CITY, ANHUI, CHINA, Tongling , Anhui , China

• Email:

• Website: http://www.film-capacitor.com

• Business Description: Anhui Safe Electronics Co., LTD., was founded in February 2007 - The company is located in Tongling City, Anhui Province, China, specialized in manufacturing metallized film for capacitor use and metallized film capacitors.

  Now its a member of CCOIC.

  Main products: Metallized film for capacitor use, CBB65（CBB61/60） AC motor capacitor and the SFPEC series of power electronics capacitors.

  The Dry DC filter capacitor of SFPEC series was rated as "High-tech Products in Anhui Province".
