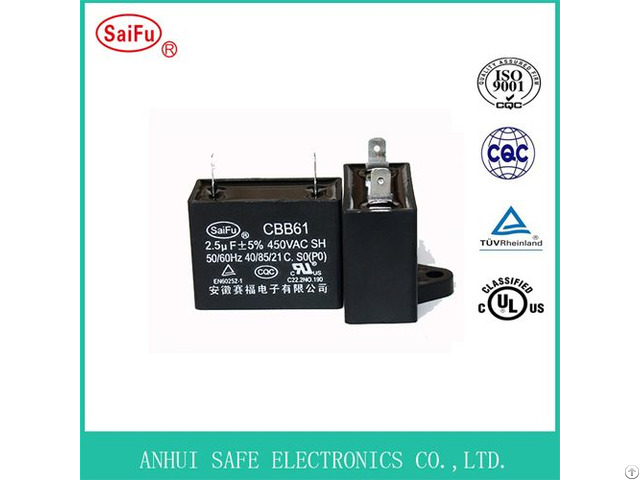

Cbb61 Ac Motor Run And Start Capacitor For Fan - China

Technical Specifications

Model NO.

CBB61 Capacitor

Type: AC Motor Run and Start Capacitor

Structure Single Capacitor

Manufacturing Material Polypropylene

Electrolyte Polypropylene Film

Reference Standards GB/T 3667.1(IEC60252-1)

Climatic category 40/70/21, 40/85/21

Class of operation Class B(10000h) Class C(3000h)

Class of safety production S0/S3

Voltage range 220VAC 370VAC 440VAC 450VAC

Capacitance range 1~35UF

Capacitance tolerance ±5%, ±10%, ±15%

Dissipation factor 20*10-4(100Hz, 20ºC)

Test voltage terminal to terminal UTT 2 Un for 2 seconds

Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Insulation Resistance ≥3000s(100Hz, 20ºC, 1min)

Altitude ≤2000m

Remain voltage when put into operation No more than 10% of rated voltage

Maximum allowed voltage No more than 1.1 times rated voltage

Maximum allowed current No more than 1.3 times rated current

Package Type Export Standard Carton for CBB61 Capacitor

Production Capacity 500, 000PCS/Month

MOQ 1 PCS

Size Available

* Note: The Composite Capacitor can be also customized producing according to our customer's request.
