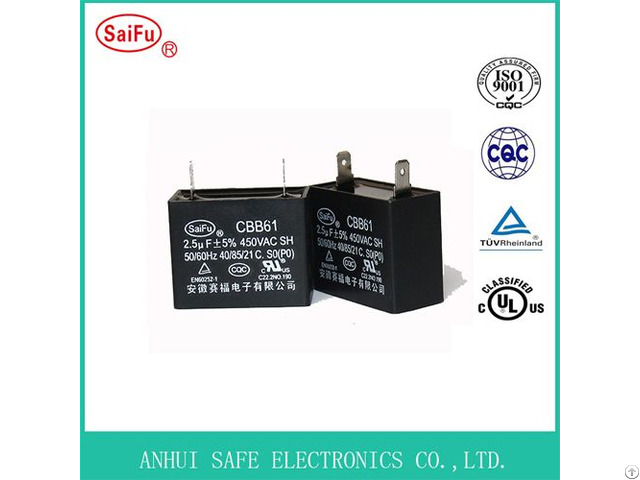

Cbb61 Ac Motor Fan Capacitor - China

Technical Specifications

Model NO.

CBB61 Capacitor

Type: AC Motor Capacitor

Structure Single Capacitor

Manufacturing Material Polypropylene

Electrolyte Polypropylene Film

Reference Standards GB/T 3667.1(IEC60252-1)

Climatic category 40/70/21, 40/85/21

Class of operation Class B(10000h) Class C(3000h)

Class of safety production S0

Voltage range 220VAC 370VAC 440VAC 450VAC

Capacitance range 1~35UF

Capacitance tolerance ±5%, ±10%, ±15%

Dissipation factor 20*10-4(100Hz, 20ºC)

Test voltage terminal to terminal UTT 2 Un for 2 seconds

Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Insulation Resistance ≥3000s(100Hz, 20ºC, 1min)

Altitude ≤2000m

Remain voltage when put into operation No more than 10% of rated voltage

Maximum allowed voltage No more than 1.1 times rated voltage

Maximum allowed current No more than 1.3 times rated current

Package Type Export Standard Carton for CBB61 Capacitor

Production Capacity 500, 000PCS/Month

MOQ 1 PCS

Size Available

* Note: The Composite Capacitor can be also customized producing according to our customer's request.

***Product Description***

CBB61 Capacitor uses metallized aluminum zinc film with thickened edges as electrode and medium.

This film is wound by winding machine and put into aluminum shell.

Then, the shell is filled with castor oil with high purity to keep it in a vacuum state, and the product can resist high

temperature.

This product has better performance and long survice life.

This product also uses the second generation machine explosion-proof design as an explosion-proof method, thus the performance of the product is greatly guaranteed and improved.

***Dimensions(mm)***

450V 0.8μF 37 13 23 1μF 37 13 23 1.5μF 37 14 25 2μF 37 16 28 2.5μF 38 18 28 3μF 47 18 34 5μF 47 22 34 8μF 48 26 34 10μF 58 26 44 16μF 58 26 44 20μF 59 29 49 30μF 68 34 51

Note: 1 - Other capacity and size series can be agreed upon according to the needs of users.

2 - The form of the outlet can be made according to the requirements of the users agreement.

***Appearance & Application***

Installation Type: Through Hole

Shape: Squareness

Capacitor Case: Plastic Case

Application: CBB61 Capacitor widely applied to the starting and running of AC single-plase motors at 50Hz/60Hz frequency power, such as air conditioning fans, electric fans, fans exhaust fans.

***Packing&Delivery** *

Packing: Export Standard Carton Packing for Capacitors

Delivery Detail: 7~15 days after payment

Port: Shanghai or Ningbo

***Why you choose us?***

1 - Leading tachnology: Have a number of invention patents

2 - Stable quality: The company has the world's most advanced production equipment, and implement ISO9001 standard management.

3 - Reasonable price: Executive"Industrial products 10% Profit in the first.

"

4 - Large inventory: This is the guarantee of the timely delivery.

5 - Fexible production: User-specific products, starting from the next single.

6 - Internet Plus manufacturing: Through Ali, MIC, Baidu, GOOGLE, official website and community forum Sales.

7 - Cordial service: 7*24 hours online, prompt reply and timely delivery.
