Cabo Mkmj Mam Energy Storage High Voltage Pulse Capacitor - China

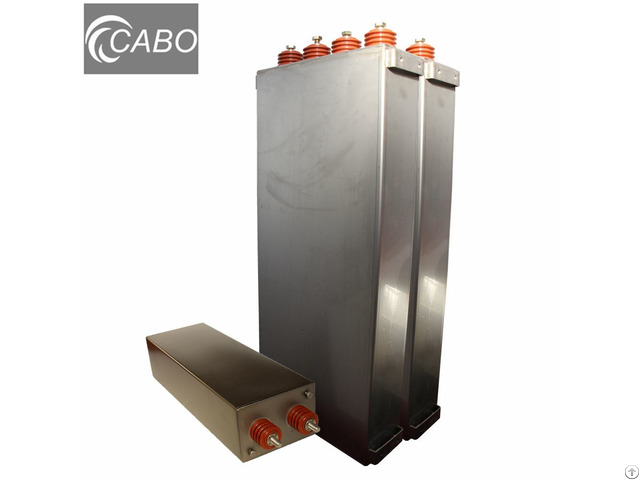

Product Description >IEC 61071 >Dry/Oil type available >High over-voltage >Low ESL >Low ESR >Heavy peak current >Metal/Insulated case >Controlled self-healing technology Capacitors design and manufacture energy storage capacitors that are not limited to a catalogue range.

Current, voltage, size, mass and terminations are matched to the customer’s requirement and application, a few of which are listed below.

Shot life and high reliability is achieved using ultra low defect density, high isotactic, Metallized polypropylene dielectric film incorporating an extended working temperature range and controlled self-healing capability.

Elements are wound on the latest precision edge controlled automatic winding machines.

High conductivity copper is used for low resistance internal connections.

Capacitors are finished in powder coated corrosion free metal or insulated cases and filled with an environmentally safe oil or dry leak free resin.

Electrical Parameter Capacitance Range 10μF~50, 000μF Operating Temperature -400C~+700C Capacitance Tolerance ±5%(J);±10% (K) Rated Voltage 3, 000~100, 000V.

DC Test Voltage between Terminal 1.1~1.5Un 2s Test Voltage between Terminal/Case 2Un, 1min Insulation Resistance R*C≥7500MΩ·μF Max.

Altitude <2000m Flame Resistance UL 94V-0 Energy 100-100, 000J Lifetime Expectancy ≥50, 000Hours (Un≤70℃) Or 1000~109shots Typical Application Used in Military, Medical and Industrial applications.

Oceanography (Subsea Surveys, Sparkers, Boomers) Power Electronics (Welding, Forming, Magnetizers, Demagnetizers, PFN’s) Research (Particle Accelerators ‘LHC, ISIS’, Lasers) Testing (Lightning Simulation, High Voltage Capacitor Banks) Defence (Range Finders, Railguns, Radar, Missile Systems, EMP) Food Industry (UV Sterilisation) Common Design Cap (μF) Voltage (KV) Energy (KJ) Peak current (KA) RMS current (A) Inductance (nH) Voltage reverse (%) Design life Energy density (J/cm3) Size(mm) L W H 10, 000 3 45 75 180 120 10 ≥20, 000 1.2 340 260 420 10, 000 3 45 75 180 120 10 ≥2, 000 2.0 340 165 400 4, 000 5 50 60 140 120 10 ≥20, 000 1.2 340 260 470 4, 000 5 50 60 140 120 10 ≥2, 000 2.0 340 165 445 500 10 45 35 90 150 10 ≥3, 000 1.8 340 170 430 500 10 45 35 90 150 10 ≥20, 000 1.2 340 260 420 500 10 25 100 120 40 10 ≥40, 000 0.37 280 356 674 500 10 25 50 120 155 20 ≥50, 000 0.6 340 220 550 4, 000 10 200 250 260 140 10 ≥2, 000 2.0 320 320 975 400 15 45 35 90 150 10 ≥20, 000 1.2 340 260 420 400 15 45 35 90 150 10 ≥2, 000 1.8 340 170 430 30 20 20 50 120 45 80 ≥100, 000 0.43 613 356 213 50 20 10 50 100 60 10 ≥200, 000 0.24 625 356 185 200 20 40 25 60 160 10 ≥4, 000 1.6 320 320 245 200 20 40 40 110 160 20 ≥50, 000 0.6 390 220 775 400 20 80 50 110 160 10 ≥4, 000 1.6 320 320 485 400 20 80 50 110 160 10 ≥20, 000 1.2 340 260 750 400 20 80 80 175 150 20 ≥50, 000 0.6 570 260 900 300 25 94 45 100 180 10 ≥4, 000 1.6 390 170 880 300 25 100 45 100 180 10 ≥20, 000 1.2 390 260 820 300 25 94 80 180 150 20 ≥50, 000 0.6 570 220 1050 12.5 40 10 180 100 40 60 ≥25, 000 0.15 686 356 280 32 40 25 50 100 75 10 ≥40, 000 0.37 686 356 280 6 60 10.8 250 100 40 60 ≥10, 000 0.16 686 356 280 8.4 60 15 200 110 40 40 ≥10, 000 0.21 711 356 280 1.2 100 6.5 150 100 40 30 ≥35, 000 0.1 635 356 280 3.0 100 15 260 110 40 20 ≥10, 000 0.24 635 356 280 *The voltage lower than 45KV were tested in lab air at sea level, Over 45KV probably were tested under oil.

HV dangers, please inquiry us for correct application.

Applications and characteristics are for guidance only.

Please contact us to discuss our full design capability.
