Smt Dek Screen Printer - China

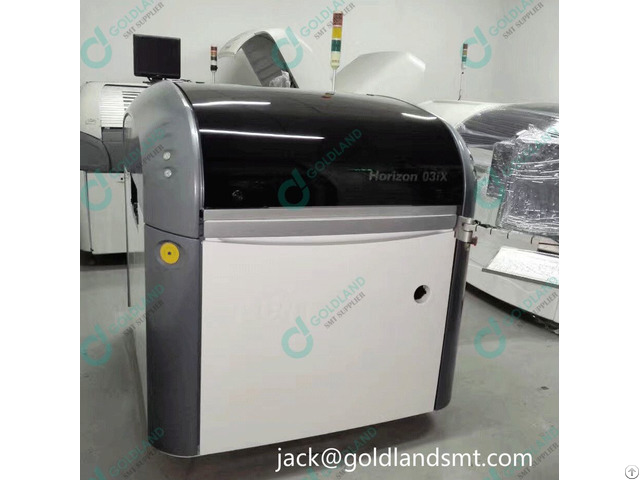

DEK Horizon 03iX Machine Standard Configuration: Standard Configuration Specification

Machine Alignment Capability >2.0 Cpk @ +/- 12.5µm, (±6 Sigma) #

Process Alignment Capability >2.0 Cpk @ +/- 25µm, (±6 Sigma) #

Core Cycle Time 10 secs (9 secs with HTC option)

Maximum Print Area 510mm* (X) x 508.5mm (Y)

Printer Construction One piece optimised welded frame

ISCANTM Machine Control Motion control using CAN BUS network

Operating System Windows 7 Standard embedded

Operator Interface Colour TFT touch screen display, keyboard and trackball with DEK InstinctivTM software.

Machine mountable on either left or right hand side.

Camera HawkEye® 750 digital camera, using IEEE 1394 interface.

Multi channel.

LED lighting.

FOV 11.3mm x 8.7mm.

Inspection window 26mm2

Camera Positioning Rotary motors and encoders with 4 micron resolution

Squeegee Pressure Mechanism Software controlled, motorised Stencil Positioning Manual width screen depth adjuster

Stencil Alignment Motorised via actuators X, Y, and Theta

Squeegee Clamped double trailing edge squeegee (1 set included)

Machine Interface Upline and downline FMI included

Connectivity RJ-45LAN (networking) and USB2 interface available

Tri Colour Beacon Programmable with audible alarm

Documentation Hard copy manuals comprising: Operator, Installation, Electrical Drawings.

On board technical manuals and tutorials supporting operator functions.

DVD containing manuals and tutorials.
