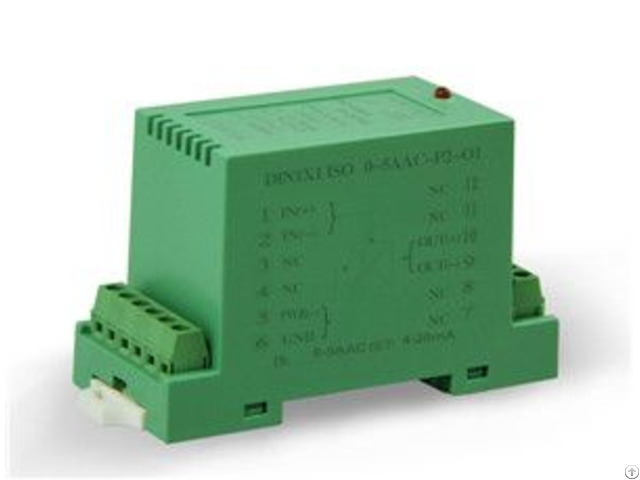

Rs232 485 Digital Signal To 4 20ma Analog Converter - China

RS485/232 to 4-20ma/0-5V/0-10V/0-2.5V D-A Converter

Model Selection:

ISODA O□- □

Output voltage or current value Communication Interface

O1: 4-20mA 485： out is RS-485 interface O2: 0-20mA 232： out is RS-232 interface

O4: 0-5V 232/485：out is one RS232 or RS485 interface

O5: 0-10V (Key-press Choice)

O6: 1-5V

O7: 0-±5V

O8: user-defined

O9: 0-±20mA

O10: 0±10V

Note: When interface type is 232/485, default is RS485 output, user can switch between RS485 and RS232 by pushing down 2 buttons inside the chassis.

When both buttons are pushed down, output is RS232, or is RS485 output.

Example:

1 - ISODA O1-485 Means 4-20ma signal output, output is RS485 interface

2 - ISODA O4-232 Means 0-5V signal output, output is RS232 interface.

3 - ISODA O7-232/485 Means 0-±5V signal output, output is RS485 or RS232 interface

(Key-press Choice) General Parameters (typical @ +25℃, Vs is 24VDC)

Outputs: Voltage / Current

Accuracy: 0.2%

Output Maladjustment: current output ±0.5 uA/℃, voltage output ±0.1mV/C

Temperature Drift: ±20 ppm/℃(±30 ppm/℃, max)

Output Resistance: current output 350Ω (4-20mA/0-20mA/0-±20mA output) Voltage output 10mA (0-5V/0-10V/0-±5V output) Communications

Protocol RS-485 or RS232 ASCII format, MODBUS

Baud Rates Software Selectable (300, 600, 1200, 2400, 4800, 9600, 19200, 38400bps)

Address (0～255) Software Selectable

Response Time: 100 ms, max

Operation Power Supply: +8~50VDC

Power Loss: <1.5W

Operation Temperature: - 45 ~ +80℃ Operation Humidity: 10 ~ 95% (non-condensing)

Storage Temperature: - 45 ~ +80℃ Storage Humidity: 10 ~ 95% (non-condensing) Isolation Input/Output: 3KVDC, 1 minute, leak current: 1mA Interface and power supply are common-ground.

Endure Impact Voltage: 3KVAC, 1.2/50us(peak value)

Mechanical Dimensions: 83 mm x 37 mm x 51 mm
