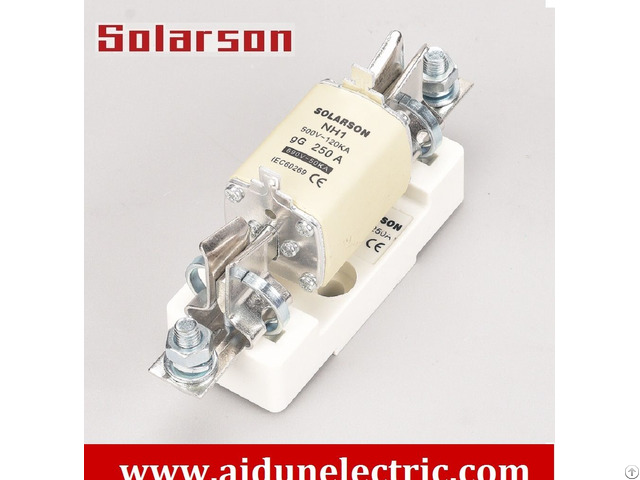

Lv Hrc Nh1 Fuse Link And Base - China

LV HRC NH1 Fuse Link and Base Technical Data:

Rated Voltage: 500/690V Rated Currents: 40A, 50A, 63A, 80A, 100A, 125A, 135A, 150A, 160A, 200A, 250A

Breaking Capacity: 500V-120kA, 690V-80kA Function Level: gG/gL\gtr\aM\gM\aR

Standard: IEC50269, DIN43620, VDE 0636 Low power loss NH(NT) fuses & fuse bases for industrial protection, conform to Class GL/GG and Class aM, gR, aR.

General industrial applications or for the protection of motor circuits.

Version with voltage free metal gripping lugs for insulated fuses.

Light yellow ceramic available.

Volt: - 400V ac, 500V ac, 690V ac lr: - 120kA-400Vac lr: - 120kA-500Vac lr: -50kA-690Vac Standards Ratings: 10A, 12A, 16A, 20A, 25A, 35A, 40A, 50A, 63A, 80A, 100A, 125A, 135A, 150A, 160A

Standards: IEC60269, EN60269, GB13539

Company Contact:

• Posted By: Yueqing Aidun Electric Co.,ltd

• Phone: 13871966113

• Address: liushi , yueqing , zhejiang , China

• Email:

• Website: https://elton-electric.en.alibaba.com

• Business Description: Yueqing Aidun Electric Co.,Ltd was found by a experienced engineer team and excellent sales team ten years ago.

  The enterprise specializes in Design and manufacturing new energy products and low &high voltage products ,our main products is DC fuse ,DC Surge protector device DC circuit breaker ,MC4,solar cable and other low voltage and high voltage products our products used for solar photovoltaic system,power system,communication system,wind power generation and so on.

  Our brand is “Solarson”,our main purpose is supply more green new energy products ,Our company grows fast and now our company integrate design R&D advanced production equipment and professional management system.

  our products have got CE,CB,TUV,CCC,RoHS and other certificates.

  Excellent quality product with good price ,we have gain a lot customers in China ,Aidun Electrical also have rich experience of export,now our main market is European ,Southeast Asia,Middle East,,America and so on.
