Best Selling Isolated 4 20ma 0 5v To Modbus Converter - China

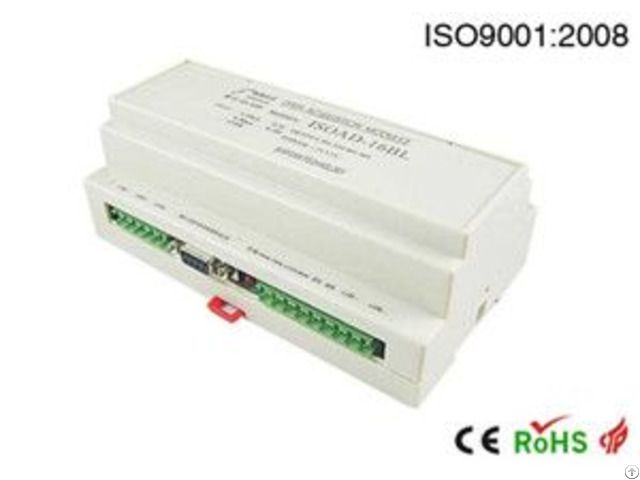

16-channle Analog Signal RS232/RS485 Isolated A-D Converter with MODBUS RTU

Model selection

ISOAD16 U(A)□ - □

U/A: Vin/Iin Communication interface

U1：0-5V A1：0-1mA 485：Output is RS-485 interface U2：0-10V A2：0-10mA 232：Output is RS-232 interface

U3：0-75mV A3：0-20mA U4：0-2.5V A4：4-20mA U5：0-±5V A5：0-±1mA U6：0-±10V A6：0-±10mA U7：0-±100mV A7：0-±20mA

U8：Customized A8：Customized

Note: User could choose RS-485 or RS-232 output by the interface wiring jumper at the back of the product.

1：ISOAD16 A4-485 Means 4-20ma signal output, output is RS485 interface

2：ISOAD16 A7-232 Means 0-5V signal output, output is RS232 interface ISOAD 16 A-D Converter General Parameters：

(typical @ +25℃, Vs @ 24VDC)

Input： Voltage / Current

Accuracy： @ +25℃ as table 1

Nonlinearity ： @ +25℃ as table 1

Input imbalance： ±0.1 uA/℃

Temperature Drift: ±15 ppm/℃ (±30 ppm/℃, max)

Input load： 50Ω (4-20mA/0-20mA/0-±20mA current input) 100Ω (0-10mA/0-±10mA current input) 1KΩ (0-1mA/0-±1mA current input) >1MΩ (voltage input) Band width： -3 dB 10 Hz

Switching rate: 2.5-30 KHz Sps

Common mode restraint (CMR)： 120 dB(1kΩ Source Imbalance @ 50/60 Hz)

Normal mode restraint (NMR)： 60 dB (1kΩ Source Imbalance @ 50/60 Hz)

Input terminal protection： over-voltage/over current protection

Communications Protocol: RS-485 or RS-232 ASCII character protocol and standard MODBUS RTU communication protocol

Baud rate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400bps, 57600, 115200bps, selectable

Address: 0～255, selectable

Response Time：100 ms max

Operation Power Supply： +24VDC+-10%, internal anti-reverse & over-voltage protection watt consumption： <8W

Operation Temperature： - 45 ~ +80℃ Operation Humidity： 10 ~ 90% (non-condensing)

Storage Temperature： - 45 ~ +80℃ Storage Humidity： 10 ~ 95% (non-condensing) Isolation withstand voltage： 3KVDC between input and output, 1 minute, stray current 1mA Output and power are common-ground.

Endure Impact Voltage： 3KVAC, 1.2/50us(peak value)

Appearance & dimension： 158*87.5*59mm
