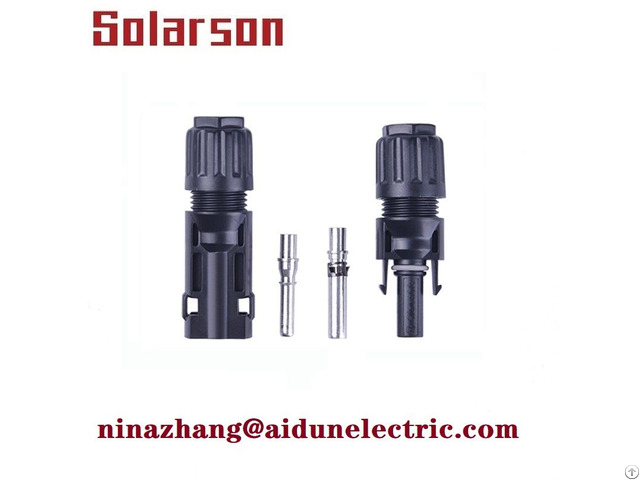

1500v Dc Mc4 Solar Pv Connector - China

1500V DC MC4 Solar PV Connector Product Description Simple on-site processing.

Acomodates PV cable with different insulation diameters.

Mating safety provided bykeyed housings.

Multiple plugging and unplugging cycles .

High current carrying capacity.

TUV and UL approved.

Technical Data Rated Current 30A(2.5-6mm2), 60A(10-16mm2) Rated Voltage 1000VDC/1500VDC Test Voltage 6000V(50Hz, 1min) Overvoltage Type/Pollution Degree CAT III /2 Contact Resistance Of Plug Connector ImΩ Contact Material Copper, Tin-plated Insulation Material PPO Degree Of Protection IP2X/IP67 Flame Class UL94-VO Safety Class II Suitable Cable OD 4.5-8.5(2.5-6.0mm2) Insertion Force/Withdrawal Force ≤ 50N/≥ 50N Connecting System Crimp connection Temperature Range -40 °C ~ +125°C
