Low Voltage Ev Charger For Electric Tractor - China

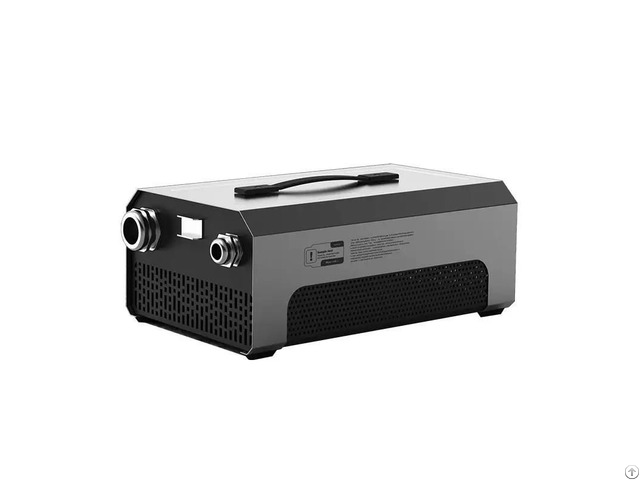

Portable EV Charger- Low Voltage output 40-100Vdc 90V lithium battery fast charge is specially used for electric forklifts, AGV, electric vehicles fast charging.

We provide charger for both lead acid and lithium forklift battery charger, quick charger solution for forklift battery pack.

Features: √ low voltage portable charger is easy to carry, the input voltage is 220V from home plug grid, can charge the EV at any time, anywhere freely.

√ By center control module, power module, lightning protection unit, Intelligent and friendly interface.

√ Using high-performance charging modules, wide voltage output range from 200-450Vdc

√ Standard, touch screen, mobile, wall - mounted, multiple design styles to meet your needs.

√ Small, light, No restraints.

√ High efficiency: ≥95% Applications: For personal use, home use, for ev fleet, light vehicle and charger sharing, Datasheet:

Model 6.6KW

AC Input Input Rating 90-265Vac or AC380V+_15% Three-phase four-wire system

AC Input Connection L2+L3+PE

Max.

Input Current 32A

Frequency 50 /60 Hz

Power Factor >0.99@ full load

Efficiency 95%

DC Output Output Voltage Range 35-120Vdc (compatible for 48v 72v 96v battery)

Max.

Output Power 6.6KW- 20KW

Max.

Output Current 18A-200A

Packing Dimension 385×230×140mm

Weight 17KG

Environmental Operating Temperature -40~85ºC, 25ºC(TYPE)

Humidity 5%-90% RH, non-condens, ng

Altitude 2000m

IP Level IP67

Mechanical Cable Length 5M(GB/T) Customized acceptable

Regulation EN61851-1

Regulation Certification CE, ROHS

Charging protocol CHAdeMO 2.0 / DIN 70121/ISO15118/IEC6185l-2 3, IEC6185l-24 Other Popular Factory Details GUANGZHOU NASN POWER CO., LTD is dedicated to producing and manufacturing AC EV charger, DC EV charger, DC power supply and battery storage products.

As a professional manufacturer, NASN POWER focuses on providing customers with professional charging equipment that is safer, more efficient and more stable.

NASN's products are oriented to the household and commercial markets in the EV and power supply charging field, including all kinds of EV Connector and EV Charger Sockets, EV Charging Cables, emergency rescue EV charger system, V2H and V2V charger, Solar EV charger system, Media screen EV charger, Portable DC fast EV Charger, Public multi-standards DC fast charger, e-scooter and e-motorcycle charger, Portable POWER STATION, portable battery speaker, and DC power supply.

FAQ Q1: What kind of EV Charger do you have?AC and DC charger with connectors Type2, CCS1/CCS2, CHAdeMO, GB/T, etc.

Q2: Do you provide customized product?

We provide OEM and ODM services for clients.

Q3: What is the delivery time of EV charger? About 4-6 weeks.

Q4: What about your warranty of EV Charger?

Generally 2 years.

Our warranty period depends on customer's requirements and we always put customer's need as priority.

Q5: How do you package it ?

A: We pack in cartons.

Q6: what's the MOQ?

A: For LOGO, color or other special requirements, a minimum of 20 is required.

If you do not have these requirements you can buy

directly, we will ship within 3-10 days.

Q7: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.

We can build the molds and fixtures.

Q8: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q9: What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q10: What is your terms of payment?

A: We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union.

Please contact us for more details.
