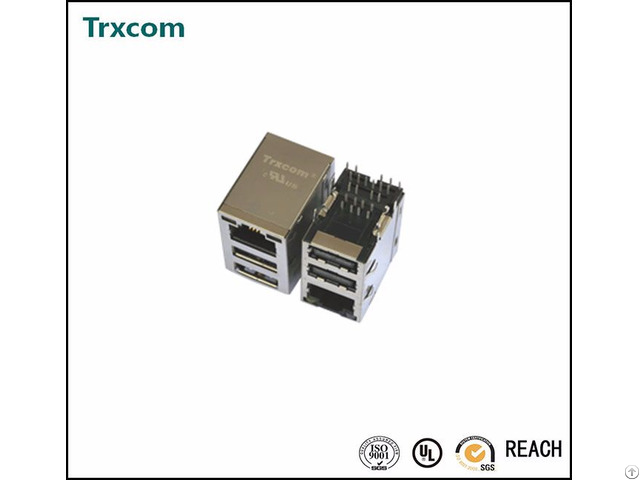

Trxcom Rj45 Connector With 10 100base Tx Jack Dual Usb Combo Trju5104bgnl - China
price: 1.00 Dollar US$
10/100Base-TX Magnetic
Single RJ45 Jack with Dual USB Combo
With led without emi-finger
Led: Yellow & Green
Tab Up
Length=27.40mm
Pin type: the soldering
UL, Reach, RoHs, ISO9001: 2008
Free sample available for testing
1 - Designed to support application, such as SOHO(ADSL modems), Lan-on-motherboard(LOM), hub and switches.
2 - Meets IEEE 802.3 specification
3 - Connector Materials:
Housing: Thermoplastic PBT+30%G.
F UL94V-0
Contact Material: Phosphor Bonze C5210R-EH Thickness= 0.35mm
Pins: Brass C2680R-H Thickness=0.25mm
Shield: SUS 201-1/2H Thickness=0.20mm
Contact plating: Gold 6 micro-inches min.
In contact area.
4 - Wave solder tip temperature: 260℃ Max, 5 Sec Max
5 - UL Certification: File Number E321120
ELECTRICAL SPECIFICATIONS AT 25℃
1 - Turn Ratio (±3%)
TX=1CT: 1CT RX=1CT: 1CT
2 - Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3 - Insertion Loss:
-1.0 dB MAX @ 1-100MHz
4 - Return Loss:
- 18dB MIN @ 1-30MHz
- 15dB MIN @ 30-60MHz
- 12dB MIN @ 60-100MHz
5 - Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6 - Common Mode Rejection:
- 30dB MIN @ 1-100MHz
7 - Hipot Test: 1500Vrms
8 - Operation Temperature Range: 0 ℃ TO 70℃
Company Contact:
- Posted By: Shenzhen Trxcom Electronics Co.,Ltd
- Phone: 86--13554918626
- Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen , Guangdong , China
- Email:
Published date: August 23, 2016
- Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic, Lan Transformer, Audio transformer.
The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
1) 10/100/1000M LAN pulse transformer and filter
2) RJ45 connector with 10/100/1000M magnetic
3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer
4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
