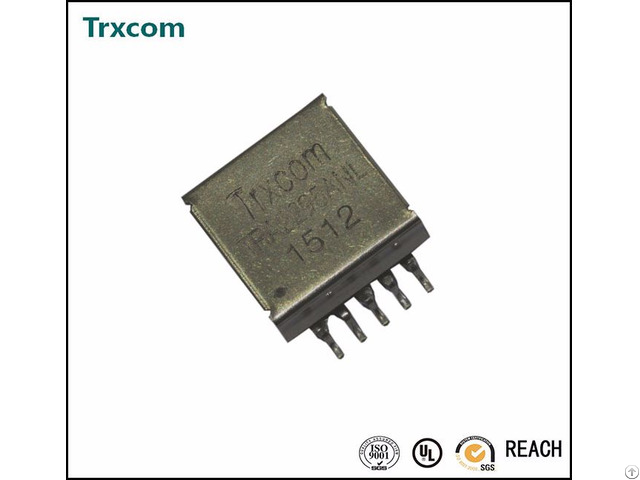

Transformer For Digital Audio Data Transmission Trs86003nl - China
price: 1.00 Dollar US$
Digital Audio Transformer
Small SMT Foorprint
Surface Mount Pakage
Isolation Voltage: 1500Vrms
Temperature: -40 To +85℃
UL, RoHs, Reach, ISO9001: 2008
Free sample available
1 - Typical applications: telephone sets, PBXs, DLC system, central office switches
2 - Small SMT footprint
3 - For RoHs part and suffix NL
4 - RoHs "NL" peak solder rating 250℃
Electrical Specification: @25℃
1 - Turn Ratio: Pri: Sec= 1: 1 ±2%
2 - DCR: Pri Side=55Ω MAX Sec Side= 70Ω MAX
3 - Primary Inductance: 2.5H MIN (1KHz 0.3V)
4 - Insertion Loss(dB MAX)
200Hz: 1.0 1KHz: 1.0
20KHz: 1.0 100KHz: 1.9
5 - Return Loss (dB MIN)
200Hz: 20 1KHz: 30 10KHz: 25
6 - Isolation Voltage: 1500VAC 5mA 3sec
7 - Operating temperature: 0 to 70℃
Company Contact:
- Posted By: Shenzhen Trxcom Electronics Co.,Ltd
- Phone: 86--13554918626
- Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen , Guangdong , China
- Email:
Published date: August 26, 2016
- Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic, Lan Transformer, Audio transformer.
The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
1) 10/100/1000M LAN pulse transformer and filter
2) RJ45 connector with 10/100/1000M magnetic
3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer
4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
