Tec Cable Downhole Sensor - China
price: 0.80 Dollar US$

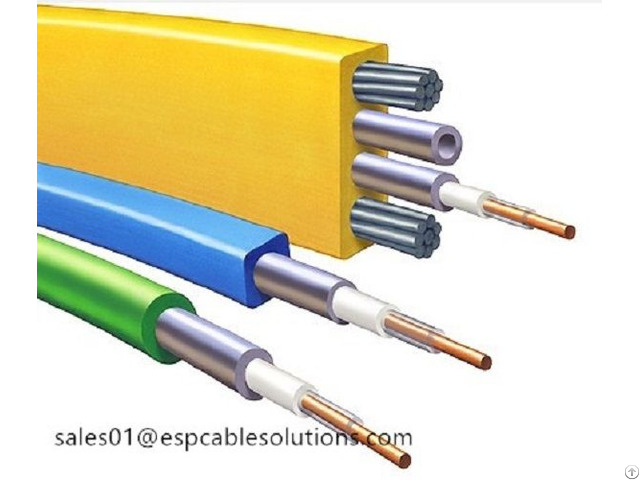

Product Name: Tubing Encapsulated Cable Application: Monitor the temperature, pressure and other parameters in every wells.
Tube Materials: 316L, Alloy 400, Alloy 825, Alloy 625 - OD of Tube: 1/8'', 1/4'', 1/2'', 3/8'', 3/4'', 5/8''.
Wall Thickness: 0.028'', 0.035'', 0.049'', 0.065'', 0.083''.
Encapsulation: Bare, Round, Square, Color-coated, Flatpacked.
Sample Parameters A: 18AWG SINGLE CONDUCTOR STAINLESS STEEL TUBE
SQUARE ENCAPSULATION 15, 000 PSI SYSTEM
INSULATION: PFA INSULATION
JACKET: PFA MATERIAL
TUBE: 1/4" x 0.028" A316L STAINLESS STEEL
ENCAPSULATION: TPR, 11mm Round A.
18#AWG 7/0.39mm Tin Coated Copper: OD 1.16mm (0.046〃) Nominal
B.
PFA INSULATION: OD 2.49mm (0.098〃) Nominal
C.
PFA JACKET: OD 4.92mm (0.194〃) Nominal
D.
316L STAINLESS STEEL TUBE: WALL THICKNESS: 0.71mm(0.028〃 ), OD 6.35mm(0.250〃) Nominal
E.
TPR ENCAPSULATION: MAJOR*MINOR : 11mm*11mm
Company Contact:
- Posted By: ESP Cable Solutions Co.,Limited
- Phone: 86 532 8099 996
- Address: Room208, BuildingD2, 1688 chan ye yuan Bei lao Road, Qingdao , Shandong , China
- Email:
Published date: January 12, 2020
- Business Description: ESP Cable Solutions Co.,Limited, we based in Dongying city, China and engaged in ESP Pumps and Cables production more than 10 years.
We only professional in ESP Systems,including ESP Cables, Tubing Encapsulated Cable (TEC Cable), Capillary tubing, TECK90 Cable, Motor lead extensions(MLE), Housing, Magnet wires, Power cables, Logging Cable
