    • Rj45 Connector With 10 100base T Integrated Magnetics For Poe Trj4049hdnl - China

    price: 1.00 Dollar US$

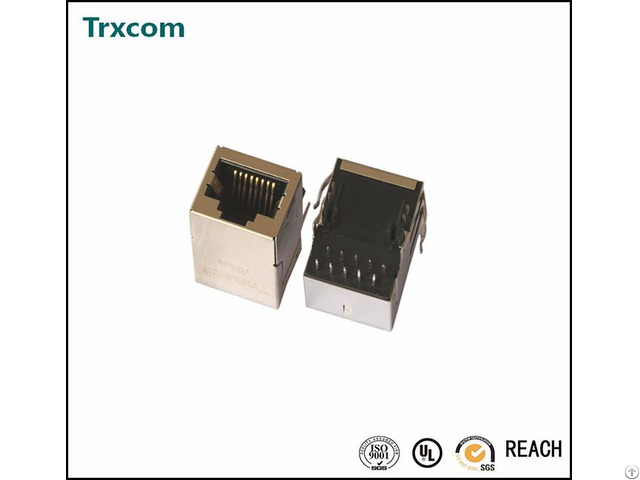

    Rj45 Connector With 10 100base T Integrated Magnetics For Poe Trj4049hdnl

    Products Photos Catalog Rj45 Connector 100base Photos Catalog

    Trxcom p/n TRJ4049HDNL= Wurth p/n 7499210121

    10/100Base-T RJ45 Connector

    Tab Down

    With PoE Function

    With led without emi-finger

    Led: Yellow & Green

    Single Port

    Length= 21.25mm

    Pin type: the soldering

    UL, Reach, RoHs, ISO9001: 2008

    Free sample available for testing

    1 - Meets IEEE 802.3 specification

    2 - Connector Materials:

    Housing Material: Thermoplastic PBT+30%G.

    F UL94V-0

    Contact Material: Phosphor Bonze C5210R-EH Thickness=0.35mm

    Pins: Brass C2680R-H Thickness=0.35mm

    Shield: SUS 201-1/2H Thickness=0.2mm

    Contact plating: Gold 6 micro-inches min.

    In contact area

    3 - Wave solder tip temperature: 265℃ Max, 5Sec Max

    4 - UL Certification: File Number E321120

    ELECTRICAL SPECIFICATION AT 25℃

    1 - Turn Ratio(±3%):

    TX=1CT: 1CT RX=1CT: 1CT

    2 - Inductance OCL:

    350uH MIN @100KHz 0.1V 8mA DC Bias

    3 - DCR: 1.2Ω MAX

    4 - Insertion Loss:

    -1.0dB MAX @ 1-100MHz

    5 - Return Loss:

    -18dB MIN @ 1-30MHz

    -16dB MIN @ 30-45MHz

    -14dB MIN @ 45-60MHz

    -12dB MIN @ 60-80MHz

    6 - Cross Talk:

    -35dB MIN @ 1-100MHz

    7 - Common Mode Rejection:

    -35dB MIN @ 1-100MHz

    8 - Balanced DC Line Current:

    350mA Max.

    @ 48 VDC Continous

    9 - Hipot Test: 1500Vrms

    10 - Operation Temperature Range: -40℃ to +85℃


    Company Contact:


    • Phone: 86--13554918626

    • Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen , Guangdong , China

    • Email: Email

    Published date: August 23, 2016

    • Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic, Lan Transformer, Audio transformer.

      The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.

      1) 10/100/1000M LAN pulse transformer and filter

      2) RJ45 connector with 10/100/1000M magnetic

      3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer

      4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
